  • Safeguard Supply ERA-DSRXPG Driveway Monitor Kit

    Safeguard Supply ERA-DSRXPG Driveway Monitor Kit

    Driveway Alarm Kit with 4,000 Foot Wireless Range

    The ERA-DSRXPG driveway alarm kit is built around two components from the Safeguard Supply ERA Series: the ERA-DSTX wireless driveway sensor and the ERA-RXPG plug-in strobe receiver. Together they form a driveway alert system that detects vehicles or people near a drive and sends that information to an indoor receiver up to 4,000 feet away in line-of-sight conditions. This makes the kit suitable for long or obstructed driveways where short-range systems struggle to reach the building.

    The system is designed for straightforward installation: the sensor mounts on a post or similar surface near the driveway and is powered by a single 9V battery, while the receiver plugs into a standard outlet inside. Once paired, motion detected at the drive will trigger the chosen chime and optional strobe inside the monitored area.

    ERA-DSTX Outdoor Driveway Motion Sensor

    The ERA-DSTX is a passive infrared (PIR) motion detector rated for outdoor use that monitors a section of driveway or approach lane. It senses the heat of moving people or vehicles crossing its field of view and sends a radio signal to the ERA-RXPG when motion is detected. The sensor includes an internal range setting that lets the installer choose between three detection distances so that coverage can be matched to the actual driveway layout.

    The ERA-DSTX offers three range settings: low for up to about 25 feet, medium for up to about 50 feet, and high for up to about 100 feet of detection distance. This adjustment helps reduce unwanted detections from areas beyond the driveway while still providing adequate coverage for the intended approach. The sensor is powered by a standard 9V alkaline battery and communicates with compatible ERA receivers at up to 4,000 feet line-of-sight.

    • Detection method: outdoor passive infrared motion sensing for people and vehicles.
    • Selectable detection ranges: low up to 25 ft, medium up to 50 ft, high up to 100 ft.
    • Power source: 9V alkaline battery.
    • Wireless range to receiver: up to 4,000 ft line-of-sight, reduced by terrain and structures.
    • Housing dimensions: approximately 4.5″ H x 3″ W x 2.25″ D.
    • Operating temperature: roughly -30°F to 120°F.
    • Operating frequency: 433 MHz.

    Driveway Sensor Placement and Settings

    Installation notes for the ERA-DSTX recommend mounting the sensor three to four feet above ground level and roughly twenty feet back from the side of the drive, aimed across the path of travel rather than down the driveway. Mounting it on a wooden post, fence, or tree is preferred, as steel posts and flexible supports can affect both radio performance and stability. The sensor should be fixed so it does not move in the wind and should not be aimed toward public roads in the distance, since the detection range on the high setting can extend beyond 100 feet.

    The sensor’s internal jumpers allow adjustment of the outdoor filter, range, and reset time between activations. For driveway use, the outdoor filter is normally enabled to ignore small movements such as leaves; the reset time can be set so that the sensor waits 10 seconds or 120 seconds before sending another alert after a detection. Fine-tuning these options and walking or driving test passes through the driveway is a common way to verify that the detection zone matches the desired coverage.

    • Recommended mounting height: about 3–4 ft above ground.
    • Typical setback from drive: about 20 ft off to the side where possible.
    • Support type: rigid wooden post, fence, or tree; avoid metal siding and flimsy mounts.
    • Filter and reset settings: switches for outdoor filtering and 10 or 120 second reset times.

    ERA-RXPG Plug-In Receiver with Strobe

    The ERA-RXPG is an indoor, plug-in wireless receiver with an integrated strobe light that works with ERA transmitters including the ERA-DSTX driveway sensor. It plugs into a standard 120V outlet and is rated for an operating range of up to 4,000 feet line-of-sight from compatible transmitters. The receiver offers three operating modes: strobe only, sound only, or sound and strobe together, with multiple melodies and four volume levels available.

    Each ERA-RXPG can be programmed with up to 12 different ERA transmitters, and each transmitter can use a distinct melody, allowing driveway alerts from the ERA-DSTX to be identified separately from door or interior sensors if the system is expanded. There is no limit to the number of ERA receivers that can be tied to a given transmitter, so additional ERA-RXPG units or other ERA receivers can be added in other areas of the building if wider coverage is needed.

    • Power: plugs into a standard 120V outlet via built-in plug.
    • Modes: sound only, strobe only, or sound plus strobe.
    • Melodies: 12 selectable tones for different transmitters.
    • Volume: four adjustable levels, up to roughly 95 dB.
    • Transmitter capacity: up to 12 ERA transmitters per receiver.
    • Receiver size: about 4.75″ H x 2.75″ W x 1.55″ D.

    How the ERA-DSRXPG Kit Works in Practice

    In a typical setup, the ERA-DSTX is installed along the driveway and configured for the appropriate detection range and reset time. The ERA-RXPG is plugged into an outlet in an office, home, or shop area where the chime needs to be heard and, if desired, where the strobe can be seen. When a vehicle or person enters the monitored section of the driveway, the sensor detects the motion and sends a signal to the receiver.

    The ERA-RXPG then plays the assigned melody and optionally flashes the strobe for a short period, alerting staff or residents that someone has arrived. If additional receivers are used elsewhere in the building, the same sensor signal can activate them as well, keeping people informed in more than one location.

    ERA Series Compatibility and Expansion

    Because both components belong to the ERA Series, the ERA-DSRXPG kit can be expanded using other ERA transmitters and receivers. Additional ERA-DSTX driveway sensors may be added for multiple drives, or other transmitters such as push buttons, magnetic contacts, or indoor motion sensors can be paired with the ERA-RXPG. Each transmitter can be assigned its own tone, making it possible to distinguish driveway alerts from door or interior alerts by sound alone.

    There is also flexibility on the receiving side: the ERA-DSTX can trigger not only ERA-RXPG plug-in receivers but also other ERA receiver models, allowing a mix of desktop, portable, and plug-in units as needed around the property.

    • Series: part of the Safeguard Supply ERA long range wireless line.
    • Compatible transmitters: ERA-DSTX and other ERA Series sensors and push buttons.
    • Compatible receivers: ERA-RXPG and other ERA Series receivers.

    Key Features of the ERA-DSRXPG Kit

    • Driveway alarm kit using an ERA-DSTX outdoor motion sensor and ERA-RXPG plug-in receiver.
    • Long wireless range of up to 4,000 ft line-of-sight between sensor and receiver.
    • Adjustable detection distance with three range settings from about 25 ft to approximately 100 ft.
    • Outdoor-rated sensor powered by a 9V alkaline battery with adjustable filter and reset options.
    • Plug-in receiver with sound, strobe, or combined operation.
    • 12 selectable chime tones and four volume levels for different transmitters and environments.
    • Supports up to 12 transmitters per ERA-RXPG receiver and allows multiple receivers per transmitter.
    • Expandable ERA system with compatibility across the full ERA Series of sensors and receivers.

    What’s Included in the ERA-DSRXPG Kit

    • One Safeguard Supply ERA-DSTX long range outdoor driveway motion sensor with mounting hardware.
    • One Safeguard Supply ERA-RXPG plug-in wireless receiver with built-in strobe.
    • Mounting brackets and screws for the driveway sensor (plate and swivel mounts where supplied).
    • Setup and user documentation for both ERA-DSTX and ERA-RXPG components.

    Product Specifications

    • System type: wireless driveway alarm kit with outdoor motion sensor and indoor plug-in receiver.
    • Kit model: ERA-DSRXPG (Safeguard Supply ERA Series).
    • Transmitter: ERA-DSTX outdoor PIR driveway motion sensor.
    • Receiver: ERA-RXPG plug-in door chime and strobe receiver.
    • Detection range (ERA-DSTX): low up to 25 ft, medium up to 50 ft, high up to 100 ft.
    • Wireless range: up to 4,000 ft line-of-sight from sensor to receiver (actual range varies with terrain and obstructions).
    • Power – sensor: 9V alkaline battery.
    • Power – receiver: plugs into standard 120V AC outlet.
    • Operating temperature (sensor): approximately -30°F to 120°F.
    • Frequency: 433 MHz.
    • Sensor dimensions: about 4.5″ H x 3″ W x 2.25″ D.
    • Receiver dimensions: about 4.75″ H x 2.75″ W x 1.55″ D.
  • Safeguard Supply ERA-DSVPRX Long Range Driveway Alert Kit

    Safeguard Supply ERA-DSVPRX Long Range Driveway Alert Kit

    Driveway Alert Kit with Portable Receiver

    The ERA-DSVPRX driveway alert kit is built from two Safeguard Supply ERA Series components: the ERA-DSTX wireless driveway sensor and the ERA-VPRX portable vibrating receiver. Together they provide a driveway alert system that detects movement at the drive and notifies staff carrying the receiver up to 4,000 feet away in line-of-sight conditions. This is useful for long driveways and larger properties where a fixed chime in one room is not enough to cover all staff.

    The driveway alert sensor mounts outdoors near the drive and is powered by a 9V battery, while the receiver is a compact, battery-powered unit with a clip for belt or pocket use. When motion is detected, the ERA-VPRX can sound a tone, vibrate, illuminate its backlit display, or use a combination of these options depending on configuration.

    ERA-DSTX Outdoor Driveway Motion Sensor

    The ERA-DSTX is the driveway alert sensor in the kit. It is a passive infrared (PIR) motion detector designed to monitor driveways, lanes, and approach areas. The sensor looks for the heat signature of moving vehicles or people crossing its field of view. When it sees motion in the detection zone, it sends a radio signal to the paired ERA-VPRX portable receiver.

    The ERA-DSTX includes a range selector that sets the maximum detection distance. The low setting covers up to around 25 feet, the medium setting extends coverage to about 50 feet, and the high setting covers up to roughly 100 feet. This allows the detection zone to be tailored to the driveway layout so that the sensor watches the intended section of drive without reaching out unnecessarily into public roads or distant areas.

    • Detection method: outdoor passive infrared motion sensing for vehicles and people.
    • Selectable detection ranges: low up to 25 ft, medium up to 50 ft, high up to 100 ft.
    • Wireless range to receiver: up to 4,000 ft line-of-sight under favorable conditions.
    • Power source: 9V alkaline battery.
    • Approximate housing size: 4.5″ H x 3″ W x 2.25″ D.
    • Operating temperature range: roughly -30°F to 120°F.
    • Radio frequency: 433 MHz.

    Driveway Sensor Mounting and Adjustment

    For a typical driveway alert installation, the ERA-DSTX is mounted on a solid support such as a wooden post, fence, or tree. Mounting height is usually around three to four feet above ground, with the sensor located about twenty feet back from the edge of the drive and aimed across the lane. Pointing across the drive lets the sensor see sideways motion as vehicles or people cross the beam, which produces a more reliable trigger than aiming directly down the driveway.

    The sensor body should be secure so it does not move in the wind, and metal posts are avoided when possible to minimize interference. The internal filter setting and reset time can be adjusted using internal switches: the outdoor filter helps ignore small movements such as leaves, while the reset time can be set to 10 seconds or 120 seconds between driveway alert activations. Installers typically walk or drive through the detection area several times while adjusting these settings to confirm that the driveway alert triggers only when and where it should.

    • Recommended mounting height: about 3–4 ft above ground level.
    • Typical placement: approximately 20 ft from the edge of the driveway, aimed across the lane.
    • Mounting surfaces: rigid wooden posts, fences, or trees; avoid flexible supports and exposed metal surfaces.
    • Settings: internal jumpers for range, outdoor filter, and reset interval.

    ERA-VPRX Portable Driveway Alert Receiver

    The ERA-VPRX is a portable receiver designed for users who need to move around a site while still receiving driveway alerts. It is powered by a rechargeable lithium-ion battery and includes a charging cable and wall adapter. At full charge, the receiver typically offers about six to seven days of standby time, depending on how often it is triggered.

    The receiver provides three alert modes: sound only, vibration only, or sound and vibration together. It offers four volume levels, with the highest setting rated around 80 dB, and supports multiple melodies so different transmitters can be given unique tones. A backlit display provides visual indication when an alert is received and also shows basic status information.

    • Alert modes: sound only, vibration only, or sound plus vibration.
    • Volume: four levels up to roughly 80 dB.
    • Wireless range: up to 4,000 ft from ERA transmitters in line-of-sight conditions.
    • Power: rechargeable lithium-ion battery with charging cable and brick included.
    • Standby time: approximately 6–7 days per charge, usage dependent.
    • Transmitter capacity: supports pairing with up to 16 ERA transmitters or sensors.
    • Dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: approximately -30°F to 120°F.

    Driveway Alerts for Mobile Staff

    In use, the ERA-DSTX monitors the driveway for activity, and the ERA-VPRX rides on a belt clip or in a pocket. When a vehicle or person enters the detection zone and triggers the driveway sensor, the receiver immediately alerts the user through vibration, sound, or both. This arrangement works well in settings such as shops, warehouses, or homes where people regularly move between rooms or buildings but still need to know when someone arrives at the drive.

    Because the receiver can pair with up to 16 transmitters, the ERA-DSVPRX driveway alert kit can be expanded over time. Additional driveway sensors, door transmitters, or indoor motion sensors in the ERA family can be added and assigned different melodies or zones, allowing staff to identify whether a driveway, front door, or secondary entrance caused the alert just by listening to the tone and checking the display.

    • Typical applications: long residential driveways, shop or warehouse approaches, gated entries, and service lanes.
    • User type: staff who need driveway alerts while moving around a property rather than staying near a fixed chime.
    • Expansion: pair additional ERA sensors to cover doors, gates, and interior zones under the same portable receiver.

    ERA Series Compatibility and Expansion

    Both the ERA-DSTX and ERA-VPRX are part of the Safeguard Supply ERA Series. Any ERA transmitter—such as push buttons, universal transmitters, interior PIR sensors, or additional driveway sensors—can be programmed to the ERA-VPRX. Each transmitter can be assigned its own melody, which helps distinguish between different types of alerts. There is flexibility to use the ERA-DSTX driveway alert sensor with other ERA receivers in addition to the portable unit, so a single driveway sensor can notify a desktop or plug-in receiver and the portable receiver at the same time if needed.

    This modular approach makes the ERA-DSVPRX kit a starting point for a broader driveway and entrance alert system, with the ability to add more transmitters and receivers as site needs change.

    • Series: part of the Safeguard Supply ERA long-range wireless platform.
    • Compatible transmitters: ERA-DSTX and other ERA Series push buttons and sensors.
    • Compatible receivers: ERA-VPRX as well as other ERA receivers, if added separately.

    Key Features of the ERA-DSVPRX Driveway Alert Kit

    • Complete driveway alert kit with outdoor motion sensor and portable receiver.
    • Up to 4,000 ft wireless range between driveway sensor and receiver in line-of-sight conditions.
    • Adjustable detection zone with low, medium, and high range settings from about 25 ft to 100 ft.
    • Outdoor-rated sensor powered by a 9V battery, with settings for filter and reset timing.
    • Portable receiver with sound, vibration, and visual indication suitable for mobile staff.
    • Rechargeable design with lithium-ion battery and typical 6–7 day standby time.
    • Supports up to 16 transmitters on the ERA-VPRX receiver, each with its own melody.
    • Expandable ERA system that can grow to include additional driveways, doors, and interior zones.

    What’s Included in the ERA-DSVPRX Kit

    • One Safeguard Supply ERA-DSTX long-range outdoor driveway motion sensor with mounting hardware.
    • One Safeguard Supply ERA-VPRX portable receiver with rechargeable battery.
    • Charging cable and power adapter for the ERA-VPRX receiver.
    • Mounting brackets and screws for the driveway sensor (plate and swivel mounts where supplied).
    • User documentation for both the ERA-DSTX and ERA-VPRX components.

    Product Specifications

    • System type: wireless driveway alert kit with outdoor motion sensor and portable receiver.
    • Kit model: ERA-DSVPRX (Safeguard Supply ERA Series).
    • Transmitter: ERA-DSTX outdoor PIR driveway sensor.
    • Receiver: ERA-VPRX portable vibrating and audible receiver.
    • Detection range (ERA-DSTX): low up to 25 ft, medium up to 50 ft, high up to 100 ft.
    • Wireless range: up to 4,000 ft line-of-sight from sensor to receiver (actual range depends on terrain and obstructions).
    • Power – sensor: 9V alkaline battery.
    • Power – receiver: rechargeable lithium-ion battery with included charger.
    • Operating temperature (sensor and receiver): approximately -30°F to 120°F.
    • Frequency: 433 MHz.
    • Sensor dimensions: about 4.5″ H x 3″ W x 2.25″ D.
    • Receiver dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Transmitter capacity (receiver): up to 16 ERA transmitters or sensors.
  • Safeguard Supply ERA-EXDCRX Wired Doorbell Extender with ERA-DCRX Receiver

    Safeguard Supply ERA-EXDCRX Wired Doorbell Extender with ERA-DCRX Receiver

    Extend Your Existing Wired Doorbell to New Areas

    The ERA-EXDCRX wired doorbell extender kit is designed for homes and businesses that already have a wired doorbell but need to hear it in more places. Instead of replacing the existing chime, the kit adds an ERA-EXTX transmitter at the wired chime and an ERA-DCRX receiver in the area where additional notification is required. When the wired button at the door is pressed, the existing chime sounds as it always has and the ERA system simultaneously sends a wireless signal up to 4,000 feet to the receiver.

    This approach is useful in multi‑story homes, back offices, garages, and warehouse spaces where the original doorbell is too quiet or too far away. The existing wiring remains in place, and the extender kit overlays a long‑range wireless alert path without requiring a new doorbell transformer or pushing wires to new locations.

    ERA-EXTX Doorbell Signal Transmitter

    The ERA-EXTX is a compact, battery‑powered transmitter that wires into a standard wired doorbell or door chime. It connects across the chime coils for one or two door positions, such as “front” and “back.” When the wired chime is energized by a button press, the ERA-EXTX detects the signal and sends a radio transmission to compatible ERA receivers. The internal battery powers the electronics, so no separate power supply is required beyond the existing doorbell circuitry.

    The transmitter is typically mounted near the wired chime unit, using short leads to connect to the chime terminals. It is designed to work with common low‑voltage doorbell systems within the stated voltage range. The unit is not intended for use with video doorbells or systems that do not present a standard low‑voltage chime coil, and documentation notes that it should only be used with conventional wired doorbells.

    • Function: converts the activation of a wired doorbell chime into a wireless signal.
    • Wireless range: up to 4,000 ft line‑of‑sight to compatible ERA receivers.
    • Door support: supports two wired doorbell inputs (typically front and back) and can distinguish them at the receiver.
    • Power source: internal battery designed for multi‑year service under normal usage.
    • Installation location: mounted near the existing wired chime inside the building.
    • Compatibility: intended for traditional low‑voltage wired doorbells; not for use with video doorbells.

    Connecting the ERA-EXTX to a Wired Doorbell

    During installation, the existing wired doorbell chime cover is removed so the chime terminals are accessible. The ERA-EXTX is wired to the same terminals that feed the chime coils, following the included wiring diagram for single‑door or two‑door setups. After wiring, the transmitter is mounted securely near the chime housing where it is protected from moisture and physical damage.

    Once the transmitter is connected, the installer pairs it with the ERA-DCRX receiver by placing the receiver into learn mode and activating the wired doorbell button. The chime rings as usual, and the ERA-EXTX sends a signal that the receiver learns and associates with a specific zone and tone. After pairing, pressing the wired doorbell button will both ring the original chime and trigger the wireless receiver in remote locations.

    • Wiring: low‑voltage connections to the existing chime terminals.
    • Pairing: trigger the wired doorbell while the ERA-DCRX is in programming mode to link the transmitter to a zone.
    • Testing: press each button and confirm that both the original chime and the ERA receiver respond correctly.

    ERA-DCRX Multi‑Zone Door Chime Receiver

    The ERA-DCRX receiver in this kit is a four‑zone, long‑range wireless chime unit designed for commercial and residential use. It plugs into a 12V DC adapter and can be placed on a desk, counter, or wall-mounted using keyhole slots on the back. The receiver supports four independent zones, allowing different transmitters or doorbell inputs to be grouped and assigned distinct chime melodies.

    The ERA-DCRX offers twelve selectable melodies and four volume levels. At its highest setting, the receiver provides a sound output around 85–90 dB at close range, which is loud enough for many warehouse and shop environments. Volume is controlled with a front‑panel knob so it can be turned up or down based on the ambient noise level.

    • Zones: 4 programmable zones with separate indicator lights.
    • Melodies: 12 selectable tones; each zone can have its own melody.
    • Volume: four adjustable levels, up to approximately 85–90 dB.
    • Power: 12V DC plug‑in power adapter.
    • Wireless range: up to 4,000 ft line‑of‑sight from compatible ERA transmitters.
    • Capacity: can store multiple transmitters across its four zones (commonly up to 12 devices in total).

    12VDC Outputs and Relay for Additional Alerts

    In addition to playing chimes, the ERA-DCRX includes four 12V DC outputs and one C‑FORM relay contact. Each zone has its own 12V output that can be configured to activate when that zone is triggered. This allows the wired doorbell extender to drive external devices such as strobes, bells, or small sirens within the rated current capacity of the outputs.

    The C‑FORM relay provides a set of dry contacts that can be wired into other equipment that requires a contact closure on activation. For example, the relay can trigger a building alarm input, a larger signaling device, or an automation system when the wired doorbell is pressed. The relay can be associated with one or more zones and follows the timing settings selected for the zone output.

    • Zone outputs: four 12V DC outputs (one per zone) for low‑voltage accessories.
    • Relay contact: one C‑FORM relay (common, normally open, normally closed) for integration with other systems.
    • Output timing: selectable activation time per zone, from a few seconds to longer intervals.
    • Typical accessories: strobes, horns, warehouse bells, and interface modules.

    How the ERA-EXDCRX Doorbell Extender Kit Works

    Once installed, the ERA-EXDCRX kit operates in parallel with the existing wired doorbell. When a visitor presses the wired button outside, the transformer energizes the chime coils and the original chime sounds as it always has. At the same time, the ERA-EXTX transmitter senses the chime voltage and sends a wireless signal to the ERA-DCRX.

    The ERA-DCRX receives this signal, identifies the zone associated with the transmitter, and plays the melody chosen for that zone. Indicator lights show which zone was activated, and any configured 12V outputs or relay contacts for that zone operate for the programmed duration. If there are multiple wired buttons (for example, front and back doors), the receiver can play different tones and light different zone indicators for each, making it easy to distinguish which door was pressed.

    • Alert path: wired doorbell activation triggers both the existing chime and the ERA-DCRX receiver.
    • Multi‑door support: the ERA-EXTX can monitor more than one door input and map each to its own zone and tone.
    • Extended coverage: the receiver can be located up to 4,000 ft away, and additional ERA receivers can be added if needed.

    ERA Series Compatibility and System Expansion

    Both the ERA-EXTX and ERA-DCRX are part of the Safeguard Supply ERA Series. The ERA-EXTX transmitter can be paired not only with the ERA-DCRX in this kit but also with other ERA receivers, such as plug‑in units or portable receivers, to repeat the doorbell sound in multiple locations. Additional transmitters from the ERA family—such as motion sensors, push buttons, and driveway sensors—can also be learned into the ERA-DCRX, each on its own zone and with its own tone.

    This makes the ERA-EXDCRX more than just a range extender; it can serve as a core component in a broader wireless alert system that encompasses wired doorbell events, motion‑based alerts, and other sensors across a property.

    • Series: Safeguard Supply ERA long‑range wireless platform.
    • Compatible receivers: ERA-DCRX, ERA-RXPG, ERA-VPRX, and other ERA receivers (when added separately).
    • Compatible transmitters: ERA-EXTX plus ERA push buttons, motion sensors, and driveway sensors.

    Key Features of the ERA-EXDCRX Doorbell Extender Kit

    • Extends an existing wired doorbell using a compact transmitter and a long‑range wireless receiver.
    • Up to 4,000 ft wireless range between ERA-EXTX transmitter and ERA-DCRX receiver in line‑of‑sight conditions.
    • Supports one or two wired doorbell buttons, with separate zones and tones available at the receiver.
    • Four‑zone receiver with twelve selectable melodies and adjustable volume up to roughly 85–90 dB.
    • Four 12V DC outputs and one C‑FORM relay for strobes, bells, and system integration.
    • Works alongside the existing chime so the original doorbell continues to operate normally.
    • Expandable ERA system that can incorporate additional transmitters and receivers as needs grow.

    What’s Included in the ERA-EXDCRX Kit

    • One Safeguard Supply ERA-EXTX wired doorbell signal transmitter.
    • One Safeguard Supply ERA-DCRX four‑zone wireless chime receiver with 12V outputs and relay.
    • 12V DC power adapter for the ERA-DCRX receiver.
    • Wiring leads and mounting hardware for the ERA-EXTX as provided by the manufacturer.
    • User documentation for both the ERA-EXTX and ERA-DCRX components.

    Product Specifications

    • System type: wired doorbell extender kit with wireless chime receiver.
    • Kit model: ERA-EXDCRX (Safeguard Supply ERA Series).
    • Transmitter: ERA-EXTX wired doorbell signal transmitter.
    • Receiver: ERA-DCRX four‑zone wireless chime receiver.
    • Wireless range: up to 4,000 ft line‑of‑sight between transmitter and receiver.
    • Doorbell compatibility: traditional low‑voltage wired doorbells; not intended for video doorbells.
    • Power – transmitter: internal battery (factory installed).
    • Power – receiver: 12V DC plug‑in adapter.
    • Zones (receiver): 4 programmable zones.
    • Outputs: four 12V DC outputs and one C‑FORM relay contact.
    • Melodies: 12 selectable tones.
    • Volume: four levels, up to approximately 85–90 dB.
    • Frequency: 433 MHz.
  • Safeguard Supply ERA-EXVPRX Wired Doorbell Extender with Portable Receiver

    Safeguard Supply ERA-EXVPRX Wired Doorbell Extender with Portable Receiver

    Extend a Wired Doorbell to a Portable Receiver

    The ERA-EXVPRX wired doorbell extender kit is designed for locations that already have a wired doorbell but need to alert staff who move around the building or work in remote areas. Instead of replacing the existing chime, the kit adds an ERA-EXTX transmitter at the wired chime and pairs it with an ERA-VPRX portable vibrating receiver. When the wired button is pressed, the original chime sounds as usual while the ERA-EXTX sends a wireless signal up to 4,000 feet to the portable receiver.

    This configuration is useful for warehouses, shops, and offices where staff may be away from the front counter, as well as larger homes where hearing the wired doorbell everywhere is difficult. The receiver’s combination of sound and vibration provides a clear indication of doorbell activity even in noisy environments or when the user cannot rely on sound alone.

    ERA-EXTX Doorbell Signal Transmitter

    The ERA-EXTX is a compact transmitter that connects to an existing low-voltage wired doorbell chime. It senses when the chime is activated by a button press and converts that event into a wireless signal for ERA receivers. The transmitter is capable of monitoring up to two doorbell inputs, typically labeled front and back on the wired chime, so both buttons can be extended wirelessly if needed.

    The transmitter is powered by an internal CR123A lithium battery and is designed to work within the voltage range of typical wired chime circuits. It mounts near the wired chime housing and uses short leads to connect to the chime terminals. The wireless range from the ERA-EXTX to ERA receivers is rated up to 4,000 feet line-of-sight, making it suitable for long distances through typical building structures.

    • Function: converts wired doorbell activation into a wireless signal.
    • Door support: accepts inputs from one or two wired doorbell buttons (front and back).
    • Wireless range: up to 4,000 ft line-of-sight to compatible ERA receivers.
    • Power source: CR123A lithium battery, designed for multi-year service.
    • Installation location: mounted near the existing wired chime inside the building.
    • Doorbell compatibility: standard low-voltage wired doorbell chimes within the specified voltage range.

    Connecting the ERA-EXTX to a Wired Doorbell

    Installation begins by removing the cover from the existing wired doorbell chime so the coil or terminal screws are accessible. The ERA-EXTX is wired to these terminals according to the included diagram, with separate connections for the front and back door circuits if both are used. After wiring, the transmitter is mounted securely near the chime using screws or adhesive, keeping the wiring neat and avoiding strain on the connections.

    To pair the system, the ERA-VPRX receiver is placed into programming mode and the wired doorbell button is pressed. The existing chime rings in the usual way and the ERA-EXTX sends a signal that the portable receiver learns as a new transmitter. Once pairing is complete and a melody is selected, pressing the wired button will both sound the original chime and cause the ERA-VPRX to alert the user.

    • Wiring method: low-voltage connections to the existing chime coil terminals.
    • Pairing: press the wired button while the ERA-VPRX is in learn mode to link the transmitter to a melody and alert pattern.
    • Verification: trigger each button multiple times to confirm that both the wired chime and portable receiver respond consistently.

    ERA-VPRX Portable Receiver with Sound and Vibration

    The ERA-VPRX is a portable receiver designed for staff who need to move around while still receiving doorbell alerts. It is powered by a rechargeable lithium-ion battery and is supplied with a charging cable and power adapter. On a full charge, the receiver typically provides about six to seven days of standby time, depending on how frequently alerts occur and which modes are used.

    The receiver offers three alert modes: sound only, vibration only, or sound and vibration together. It provides four volume settings up to roughly 80 dB at the highest level and supports multiple melodies so different transmitters can be identified by sound. A backlit display and indicator icons show when an alert is received and provide basic status information such as battery level.

    • Alert modes: sound only, vibration only, or sound plus vibration.
    • Volume: four adjustable levels up to about 80 dB.
    • Wireless range: up to 4,000 ft from ERA transmitters in line-of-sight conditions.
    • Power: rechargeable lithium-ion battery with included charger.
    • Standby time: approximately 6–7 days per charge, usage dependent.
    • Transmitter capacity: can pair with up to 16 ERA transmitters, each with its own melody if desired.
    • Dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: approximately -30°F to 120°F.

    Mobile Doorbell Alerts for Staff on the Move

    With the ERA-EXVPRX kit installed, a visitor pressing the wired doorbell at the entrance triggers three things at once: the existing mechanical or electronic chime rings as before, the ERA-EXTX sends a wireless signal, and the ERA-VPRX portable receiver activates for the user carrying it. Depending on how the receiver is configured, the alert may consist of a melody, vibration, or a combination of both.

    This behavior is particularly helpful in shops, warehouses, and offices where staff may be away from the front counter, as well as in residential settings where a caregiver or homeowner wants doorbell alerts while in another part of the house or outside. Because the receiver is portable, it stays with the user rather than being tied to a fixed location, reducing the chance of missed doorbell calls.

    • Alert path: wired doorbell press triggers the original chime and a wireless alert to the portable receiver.
    • User experience: vibration and tone options help ensure alerts are noticed even in noisy or quiet environments.
    • Mobility: belt clip and compact size make it practical to carry throughout the day.

    ERA Series Compatibility and Expansion

    Both the ERA-EXTX and ERA-VPRX are part of the Safeguard Supply ERA Series. The ERA-EXTX transmitter can be paired with additional ERA receivers beyond the portable unit if needed, such as desktop receivers or plug-in strobe receivers in other parts of the building. Likewise, the ERA-VPRX can be paired with other ERA transmitters, not just the doorbell extender, including push buttons, motion sensors, and driveway sensors.

    Because the receiver can learn up to sixteen transmitters, different inputs—such as the front doorbell, a side door, and a motion sensor—can each be assigned different melodies. This allows users to identify the source of an alert by listening to the tone and checking the receiver’s display, without needing separate devices for each input.

    • Series: Safeguard Supply ERA long-range wireless family.
    • Compatible transmitters: ERA-EXTX plus other ERA push buttons, door contacts, and motion sensors.
    • Compatible receivers: ERA-VPRX, as well as other ERA receivers that may be added later.

    Key Features of the ERA-EXVPRX Doorbell Extender Kit

    • Wired doorbell extender kit that adds a long-range portable receiver to an existing doorbell.
    • Up to 4,000 ft wireless range between ERA-EXTX transmitter and ERA-VPRX receiver in line-of-sight conditions.
    • Supports two door inputs at the wired chime, typically front and back doorbells.
    • Portable receiver alerts with sound, vibration, or both, suitable for staff on the move.
    • Rechargeable design with lithium-ion battery and approximately 6–7 days of standby time.
    • Expandable system that can incorporate additional ERA transmitters and receivers as needs grow.
    • Typical applications: warehouses, retail stores, offices, workshops, and homes where the existing doorbell is hard to hear.

    What’s Included in the ERA-EXVPRX Kit

    • One Safeguard Supply ERA-EXTX wired doorbell signal transmitter.
    • One Safeguard Supply ERA-VPRX portable receiver with rechargeable battery.
    • Charging cable and power adapter for the ERA-VPRX receiver.
    • Wiring leads and mounting hardware for connecting the ERA-EXTX to the wired chime.
    • User documentation for both ERA-EXTX and ERA-VPRX components.

    Product Specifications

    • System type: wired doorbell extender kit with portable vibrating receiver.
    • Kit model: ERA-EXVPRX (Safeguard Supply ERA Series).
    • Transmitter: ERA-EXTX wired doorbell signal transmitter.
    • Receiver: ERA-VPRX portable receiver with sound and vibration.
    • Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.
    • Doorbell compatibility: traditional low-voltage wired doorbell chimes within the supported voltage range.
    • Power – transmitter: CR123A lithium battery.
    • Power – receiver: rechargeable lithium-ion battery with included charger.
    • Alert modes (receiver): sound only, vibration only, or sound plus vibration.
    • Volume: four levels up to approximately 80 dB.
    • Transmitter support (receiver): up to 16 ERA transmitters can be paired with unique melodies.
    • Receiver dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: approximately -30°F to 120°F.
    • Frequency: 433 MHz.
  • Safeguard Supply ERA-PBDCR Wireless Push Button and Chime Receiver Kit

    Safeguard Supply ERA-PBDCR Wireless Push Button and Chime Receiver Kit

    Long-Range Wireless Door Chime and Entrance Alert Kit

    The ERA-PBDCR wireless door chime kit provides a long-range entrance alert solution for businesses and larger homes. It combines the ERA-PBTX wireless push button transmitter with the ERA-DCRX four-zone chime receiver, both part of the Safeguard Supply ERA Series. When someone presses the push button at the door, the signal can travel up to 4,000 feet in line-of-sight conditions to the receiver, which plays a chime tone and can operate additional equipment through its built-in outputs.

    This kit is suited for retail entrances, warehouse and shop doors, service counters, and gated entries where a wired doorbell is impractical or the distance is too great for standard wireless systems. The push button is designed for outdoor mounting, while the receiver is intended for indoor use on a desk, counter, or wall.

    ERA-PBTX Wireless Push Button Transmitter

    The ERA-PBTX is the wireless push button included with this kit. It functions as a doorbell button and entry alert transmitter, sending a radio signal to compatible ERA receivers when the button is pressed. The transmission range is rated up to 4,000 feet in line-of-sight conditions, allowing the button to be mounted at distant doors, gates, or building entrances while the receiver is located deep inside the building.

    The push button housing is built for outdoor use and is resistant to typical weather conditions such as rain and sun. A halo-style LED around the button illuminates when pressed, confirming activation to the person at the door and improving visibility in low-light conditions. The ERA-PBTX is powered by an internal lithium coin-cell battery designed for multi‑year service in normal use.

    • Function: wireless doorbell push button and transmitter.
    • Wireless range: up to 4,000 ft line-of-sight to ERA receivers.
    • Construction: outdoor-rated housing for mounting at exterior doors or gates.
    • Indicator: lighted halo LED provides feedback when the button is pressed.
    • Power source: lithium coin-cell battery (such as CR2450) with an expected life of approximately 2–3 years under typical use.
    • Mounting: surface-mount on door frames, walls, posts, or gate structures using the included hardware.

    Push Button Placement and Use

    For a standard installation, the ERA-PBTX is mounted at the main customer entrance or another frequently used door. The button can be installed on wood, metal, or masonry surfaces with appropriate fasteners, ensuring that it is securely fixed and easily reachable for visitors. In some applications it may be mounted at a gate or side door to alert staff when deliveries or visitors arrive away from the main entrance.

    Because of the long wireless range, care should be taken to orient the button generally toward the building where the ERA-DCRX receiver is located, and to avoid obstructing the path with large metal objects when possible. Once installed, the button is paired to a zone on the receiver and tested by pressing it and confirming that the selected tone plays and the zone indicator lights as expected.

    • Typical locations: front doors, service entrances, side doors, customer entrances, and gates.
    • Height: standard doorbell height where it is easy for visitors to reach.
    • Orientation: mount on a flat surface with the face of the button pointed generally toward the building or receiver location.

    ERA-DCRX Four-Zone Chime Receiver

    The ERA-DCRX is a multi-zone wireless receiver designed for commercial and business door chime applications. It can be placed on a desktop or mounted on a wall and is powered by a 12V DC plug-in adapter. The receiver supports four zones, and each zone can have one or more transmitters assigned to it. When the ERA-PBTX is activated, the receiver plays the tone assigned to that zone and lights the corresponding zone indicator.

    The ERA-DCRX provides twelve selectable melodies and four volume settings. The maximum volume is roughly 85–90 dB at close range, which is loud enough for many shops, offices, and warehouse areas. Volume is adjusted via a front-panel control so it can be set to an appropriate level for the environment.

    • Zones: 4 programmable zones, each with its own tone and indicator light.
    • Melodies: 12 selectable chime tones to distinguish different transmitters.
    • Volume: four adjustable levels up to approximately 85–90 dB.
    • Power: 12V DC adapter included.
    • Wireless range: up to 4,000 ft line-of-sight from ERA transmitters.
    • Receiver capacity: supports up to 12 transmitters or sensors in total.

    12VDC Outputs and C‑FORM Relay Integration

    In addition to playing chimes, the ERA-DCRX includes four 12V DC outputs and a C‑FORM relay that can be used to trigger external devices. Each zone has its own 12V DC output terminal that can be configured to activate when a transmitter assigned to that zone is triggered. This allows connection of accessories such as small strobes, bells, or sirens, within the rated current of the outputs.

    The C‑FORM relay provides a set of dry contacts that can be wired to external equipment that expects a contact closure, such as a larger bell, an alarm panel, or an automation controller. The relay can be associated with specific zones and set to follow the same activation time as the corresponding 12V output, which is typically adjustable between several seconds and a couple of minutes.

    • Zone outputs: four 12V DC outputs, one per zone, for low-voltage accessories.
    • Relay: one C‑FORM relay (common, normally open, normally closed) for system integration.
    • Output timing: selectable activation duration tied to zone configuration (for example, 5–10 seconds or 1–2 minutes).
    • Integration examples: strobes, horns, bells, or connections to external control or notification systems.

    How the ERA-PBDCR Door Chime Kit Operates

    Once installed, the ERA-PBTX push button serves as the user-facing interface at the door or gate. When a visitor presses the button, the transmitter immediately sends a radio signal to the ERA-DCRX receiver. The receiver recognizes which zone the button belongs to, lights that zone indicator, and plays the selected chime tone. If a 12V accessory or relay output has been configured for that zone, it is activated for the programmed time as well.

    Because additional transmitters can be added to other zones, the ERA-PBDCR kit can serve as the base of a multi-entrance alert system. Different doors or entry points can be assigned different tones and zones so staff can tell which location has activity just by listening and checking the receiver’s indicator lights.

    • Alert path: button press at the door triggers sound and visual indication on the ERA-DCRX.
    • Multi-entrance support: multiple push buttons or other sensors can be added and organized by zone.
    • Accessory control: optional 12V devices or relays can be wired to respond when the button is pressed.

    ERA Series Compatibility and Expansion

    Both the ERA-PBTX and ERA-DCRX are part of the Safeguard Supply ERA Series. The ERA-DCRX can receive signals from a range of ERA transmitters, including driveway sensors, indoor motion sensors, universal transmitters, and additional push buttons. The ERA-PBTX can also transmit to other ERA receivers such as plug-in or portable units that may be added later.

    This flexibility allows the ERA-PBDCR kit to be expanded into a broader alert system that covers multiple doors, gates, and approach areas. Additional receivers can be added as needed, and there is no fixed limit to how many receivers can listen to the signal from a single ERA-PBTX push button.

    • Series: part of the Safeguard Supply ERA long-range wireless platform.
    • Compatible transmitters: ERA-PBTX plus other ERA motion, door, and driveway sensors.
    • Compatible receivers: ERA-DCRX and other ERA receivers when added separately.

    Key Features of the ERA-PBDCR Wireless Door Chime Kit

    • Complete wireless push button and chime kit using ERA-PBTX and ERA-DCRX components.
    • Long wireless range up to 4,000 ft line-of-sight between push button and receiver.
    • Outdoor-rated push button with illuminated halo and long-life battery.
    • Four-zone receiver with twelve melodies and four volume levels up to roughly 85–90 dB.
    • 12V DC outputs and C‑FORM relay for strobes, bells, and integration with other systems.
    • Expandable design that supports additional transmitters and receivers across the ERA Series.
    • Suitable applications: business entrances, warehouse doors, shop counters, and residential gates.

    What’s Included in the ERA-PBDCR Kit

    • One Safeguard Supply ERA-PBTX wireless push button transmitter.
    • One Safeguard Supply ERA-DCRX four-zone wireless chime receiver.
    • 12V DC power adapter for the ERA-DCRX receiver.
    • Mounting plate and hardware for the ERA-PBTX push button.
    • User documentation for both the ERA-PBTX and ERA-DCRX components.

    Product Specifications

    • System type: wireless doorbell and entrance alert kit with push button and desktop receiver.
    • Kit model: ERA-PBDCR (Safeguard Supply ERA Series).
    • Transmitter: ERA-PBTX wireless push button doorbell.
    • Receiver: ERA-DCRX four-zone chime receiver with outputs.
    • Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.
    • Power – push button: lithium coin-cell battery (e.g., CR2450), included.
    • Power – receiver: 12V DC plug-in power adapter.
    • Zones (receiver): 4 programmable zones, multiple transmitters per zone.
    • Outputs: four 12V DC outputs and one C‑FORM relay contact.
    • Output timing: selectable activation time per zone (typically 5–10 seconds or 1–2 minutes).
    • Melodies: 12 selectable tones.
    • Volume: four levels, up to approximately 85–90 dB.
    • Frequency: 433 MHz.
  • Safeguard Supply ERA-PBVPRX Wireless Push Button and Portable Receiver Kit

    Safeguard Supply ERA-PBVPRX Wireless Push Button and Portable Receiver Kit

    Wireless Doorbell Kit for Staff on the Move

    The ERA-PBVPRX wireless push button and receiver kit is part of the Safeguard Supply ERA Series and is designed to deliver long-range doorbell alerts directly to mobile staff. It includes the ERA-PBTX wireless push button transmitter and the ERA-VPRX portable vibrating receiver. When a visitor presses the button, the transmitter sends a signal up to 4,000 feet in line-of-sight conditions to the portable receiver, which can vibrate, sound a chime, or do both so the user does not miss calls at the door.

    This setup is particularly useful in environments where background noise is high or where employees frequently move between rooms, aisles, or buildings. Instead of relying on a wall-mounted chime that may not be heard everywhere, the alert travels with the person responsible for answering the door.

    ERA-PBTX Long-Range Wireless Push Button

    The ERA-PBTX is a long-range wireless push button transmitter designed for outdoor or indoor use. It serves as the doorbell button in this kit, sending a radio signal to compatible ERA receivers whenever it is pressed. The transmitter’s wireless range is rated up to 4,000 feet line-of-sight, giving it enough reach for large homes, offices, or warehouse complexes where doors are far from work areas.

    The push button features a halo-style illuminated ring that provides a soft glow, helping visitors locate the button and confirming activation when pressed. The housing is built to withstand typical weather conditions, and the unit is powered by a lithium coin-cell battery designed for long life under normal usage.

    • Function: wireless doorbell push button transmitter.
    • Wireless range: up to 4,000 ft line-of-sight to ERA receivers.
    • Construction: outdoor-rated design suitable for door frames, gate posts, and exterior walls.
    • Indicator: lighted halo ring that enhances visibility and shows when the button has been pressed.
    • Power source: lithium coin-cell battery with an expected life of about 2–3 years depending on usage.
    • Dimensions: approximately 3.0″ H x 2.25″ W x 1.75″ D.
    • Mounting: surface-mount plate with included screws or appropriate fasteners for the surface type.

    Push Button Placement and Setup

    For typical installations, the ERA-PBTX is mounted at the primary customer entrance or another door where visitors or drivers are expected to signal for assistance. It should be installed at a comfortable height so it is easy to see and reach, and on a stable surface that keeps the button securely in place. In some cases, it may be installed on a post near a loading dock or gate to give delivery drivers a convenient way to request attention.

    After mounting, the push button is paired to the ERA-VPRX receiver. The receiver is placed into learn mode, the button is pressed, and the two devices store each other’s information. A melody is selected on the receiver so that the tone associated with this button is recognizable. Once pairing and tone selection are complete, pressing the button activates the portable receiver whenever it is within wireless range.

    • Typical locations: front doors, side entrances, warehouse doors, gates, and counters.
    • Installation height: similar to a standard doorbell height for easy access by visitors.
    • Pairing method: place the receiver in program mode, then press the ERA-PBTX button to register it.

    ERA-VPRX Portable Receiver with Vibration and Sound

    The ERA-VPRX is a compact, portable receiver that provides alerts directly to the person carrying it. Powered by a rechargeable lithium-ion battery, it is designed for several days of typical use between charges. The receiver offers three main alert modes: sound only, vibration only, or sound and vibration together, allowing users to choose what works best for their environment.

    The ERA-VPRX supports four volume levels up to around 80 dB and offers multiple melodies so different transmitters can be identified by tone. A backlit display and small indicator icons light up when an alert is received and can show basic information such as signal source and battery status. A belt clip or similar attachment makes it easy to carry on clothing, and the flat back allows it to stand upright on a desk if needed.

    • Alert modes: sound only, vibration only, or sound plus vibration.
    • Volume: four adjustable levels up to about 80 dB, plus a mute option.
    • Wireless range: up to 4,000 ft from ERA transmitters in line-of-sight conditions.
    • Power: rechargeable lithium-ion battery with included charger.
    • Battery life: approximately 6–7 days of standby time on a full charge, depending on alert frequency and mode.
    • Transmitter capacity: can pair with up to 16 ERA transmitters, each with its own melody.
    • Dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: roughly -30°F to 120°F.

    How the ERA-PBVPRX Kit Works Day to Day

    In everyday use, a visitor presses the ERA-PBTX button at the door or gate, causing the transmitter to send a wireless signal to the ERA-VPRX. The portable receiver alerts the user with the selected melody, vibration, or both, letting them know someone is waiting for assistance. Because the receiver is carried on the person, it remains effective as the user moves throughout the building or property, up to the limits of the wireless range.

    If more than one push button is added to the system, each can be assigned its own melody so the receiver’s tone tells staff which door was pressed. This can be helpful when using separate buttons at a front door, back door, loading dock, or gated entrance and needing to respond differently depending on the location.

    • Alert path: button press at the door triggers sound and/or vibration on the portable receiver.
    • Mobility: receiver can be worn on a belt or carried in a pocket for constant coverage.
    • Multi-door support: additional ERA-PBTX buttons can be added with distinct melodies.

    ERA Series Compatibility and Expansion

    Both the ERA-PBTX and ERA-VPRX are part of the Safeguard Supply ERA Series, which means they work with a broad family of compatible transmitters and receivers. The ERA-VPRX can learn up to sixteen transmitters, so you can add driveway sensors, indoor motion sensors, or door contacts alongside the push button and assign each its own tone. The ERA-PBTX can also be paired with other ERA receivers if you later decide to add a fixed chime or strobe receiver in addition to the portable unit.

    This expandability allows the ERA-PBVPRX kit to start as a simple wireless doorbell and grow into a multi-point alert system for larger properties. As needs change, you can add more transmitters and receivers without replacing the original components.

    • Series: Safeguard Supply ERA long-range wireless platform.
    • Compatible transmitters: ERA-PBTX plus other ERA push buttons, motion sensors, driveway sensors, and door contacts.
    • Compatible receivers: ERA-VPRX and other ERA receivers added separately, such as plug-in or desktop units.

    Key Features of the ERA-PBVPRX Wireless Doorbell Kit

    • Complete wireless doorbell kit with long-range push button and portable vibrating receiver.
    • Up to 4,000 ft wireless range between ERA-PBTX and ERA-VPRX in line-of-sight conditions.
    • Outdoor-rated push button with illuminated halo and long-life battery.
    • Portable alerts with sound, vibration, or both, suitable for staff who cannot stay near a fixed chime.
    • Rechargeable receiver offering about 6–7 days of standby time per charge.
    • Expandable system that supports up to 16 transmitters and additional ERA receivers.
    • Typical applications: warehouses, retail shops, offices, loading docks, and residential gates.

    What’s Included in the ERA-PBVPRX Kit

    • One Safeguard Supply ERA-PBTX long-range wireless push button transmitter.
    • One Safeguard Supply ERA-VPRX portable receiver with rechargeable battery.
    • Mounting plate and hardware for the ERA-PBTX push button.
    • Charging cable and power adapter for the ERA-VPRX receiver.
    • User documentation for both the ERA-PBTX and ERA-VPRX components.

    Product Specifications

    • System type: wireless doorbell kit with push button and portable vibrating receiver.
    • Kit model: ERA-PBVPRX (Safeguard Supply ERA Series).
    • Transmitter: ERA-PBTX wireless push button doorbell.
    • Receiver: ERA-VPRX portable receiver with sound and vibration.
    • Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.
    • Power – push button: lithium coin-cell battery (included).
    • Power – receiver: rechargeable lithium-ion battery with included charger.
    • Alert modes (receiver): sound only, vibration only, or sound plus vibration.
    • Volume: four adjustable levels up to approximately 80 dB.
    • Transmitter capacity (receiver): up to 16 ERA transmitters can be paired.
    • Receiver dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: approximately -30°F to 120°F.
    • Frequency: 433 MHz.
  • Safeguard Supply ERA-PRXPG Indoor Motion Sensor with Strobe Light Receiver

    Safeguard Supply ERA-PRXPG Indoor Motion Sensor with Strobe Light Receiver

    Indoor Motion Sensor Kit with Flashing Strobe Receiver

    The ERA-PRXPG indoor motion sensor kit combines two components from the Safeguard Supply ERA Series: the ERA-PIR motion sensor transmitter and the ERA-RXPG plug-in door chime receiver with strobe. Together they form an indoor motion alert system that watches for people entering a monitored area and signals staff with sound and light from up to 4,000 feet away in line-of-sight conditions. This makes the kit well suited for retail doors, back hallways, stockroom entrances, and other interior points where a clear motion alert is needed.

    The ERA-PIR is mounted in the area to be monitored and is powered by a 9V battery. The ERA-RXPG plugs into a standard wall outlet and can be configured to use sound only, strobe only, or sound and strobe together. When motion is detected, the receiver plays the selected tone and, if enabled, flashes its strobe for a set period, providing a visual alert that is easy to see even in noisy environments.

    ERA-PIR Indoor Motion Sensor Transmitter

    The ERA-PIR is a passive infrared (PIR) motion sensor designed primarily for indoor use. It detects the combination of heat and movement as people walk through its field of view. When a person enters the monitored zone, the ERA-PIR sends a wireless radio signal to the paired ERA receiver. With a transmission range rated up to 4,000 feet in line-of-sight conditions, the sensor can be installed in one part of a building while the receiver is located in another, as long as the overall site layout is within that range.

    The monitoring zone of the ERA-PIR is adjustable so the coverage width and depth can be tuned to match the doorway, hallway, or area being protected. The sensor is typically mounted above or beside an entrance, aimed so that people cross through the detection pattern rather than walking directly toward or away from it. This orientation helps the PIR detect motion more consistently and reduces missed activations.

    • Detection method: indoor passive infrared sensing for people moving through the monitored area.
    • Wireless range: up to 4,000 ft transmission distance to compatible ERA receivers under ideal conditions.
    • Power source: 9V alkaline battery.
    • Typical coverage: adjustable monitoring zone suitable for standard doorways and interior passages.
    • Mounting options: wall or ceiling mounting near the area to be monitored.
    • Compatibility: works with all ERA Series receivers, including ERA-RXPG.

    Indoor Motion Sensor Placement and Use

    In a typical installation, the ERA-PIR is positioned near an interior doorway, over a store entrance, or along a corridor where people regularly pass. Mounting height is chosen so the sensor has a clear view of the area without being blocked by fixtures or signage. The field of view can be narrowed or widened using the sensor’s adjustable settings so that only the intended path of travel is monitored.

    The sensor should be installed away from HVAC vents, rapidly moving air, and direct sunlight where possible, since abrupt temperature changes can affect PIR operation. Once mounted, the installer walks through the monitored zone several times to confirm that the sensor triggers consistently and that the receiver responds with the desired tone and strobe behavior.

    • Typical mounting locations: over entry doors, above interior hallway openings, or on walls near aisles.
    • Detection orientation: aim across the walking path for better recognition of movement.
    • Environmental considerations: avoid pointing directly at large windows, heaters, or fans when possible.

    ERA-RXPG Plug-In Receiver with Flashing Strobe

    The ERA-RXPG is a plug-in wireless receiver that provides both audible and visual notification when an ERA transmitter such as the ERA-PIR is activated. It plugs into a standard 120V wall outlet and includes an integrated strobe light on the front of the housing. When the motion sensor sends a signal, the receiver can play one of its available chime tones, flash the strobe, or do both at the same time depending on how it is configured.

    The receiver offers three operating modes: sound only, strobe only, and sound plus strobe. Twelve different melodies are available, and four volume levels allow the alert to be adjusted from a lower volume up to a loud setting suitable for many commercial spaces. The strobe typically flashes for several seconds on activation, providing a clear visual cue for locations where it may be hard to hear the chime or where a visual signal is required.

    • Power: plugs directly into a standard 120V outlet.
    • Operating modes: sound only, strobe only, or sound and strobe together.
    • Melodies: 12 selectable chime tones.
    • Volume control: four adjustable levels up to approximately 95 dB at the highest setting.
    • Visual alert: built-in flashing strobe light on the front of the receiver.
    • Wireless range: up to 4,000 ft line-of-sight from compatible ERA transmitters.
    • Receiver capacity: can be programmed with up to 12 different ERA transmitters, each with its own melody if desired.
    • Dimensions: roughly 4.75″ H x 2.75″ W x 1.5″ D.

    How the ERA-PRXPG Motion Alert Kit Operates

    In use, the ERA-PIR monitors the selected indoor area, while the ERA-RXPG is placed anywhere within range that has an available wall outlet—commonly near a service counter, office desk, or back room. When someone enters the sensor’s detection zone, the ERA-PIR transmits a signal that causes the receiver to trigger. Based on the selected mode, the receiver will sound a chime, flash its strobe, or do both.

    Because the ERA-RXPG can learn up to 12 transmitters, the same receiver can handle alerts from additional sensors beyond the ERA-PIR. For example, separate motion sensors could be placed at multiple entrances, or door contact transmitters could be added. Each transmitter can use a different melody, making it possible to tell which door or area caused the alert by listening to the tone and watching the strobe.

    • Alert path: motion detected by ERA-PIR triggers sound and/or strobe at the ERA-RXPG.
    • Placement flexibility: receiver can be plugged into any indoor outlet within wireless range.
    • Multi-zone capability: additional ERA transmitters can be added and assigned different tones.

    ERA Series Compatibility and Expansion

    Both the ERA-PIR and ERA-RXPG belong to the Safeguard Supply ERA Series, which means they are part of a broader family of wireless alert devices. The ERA-PIR can transmit to other ERA receivers in addition to the ERA-RXPG, while the ERA-RXPG can receive signals from other ERA transmitters such as push buttons, door contacts, and driveway sensors. This makes the ERA-PRXPG kit a starting point for larger systems that may include both indoor and outdoor alerts.

    There is no fixed limit to the number of ERA-RXPG or other ERA receivers that can listen to a given ERA-PIR sensor, so a single motion sensor can be used to trigger alerts in multiple rooms by adding additional receivers as needed.

    • Series: part of the Safeguard Supply ERA long-range wireless platform.
    • Compatible transmitters: ERA-PIR plus other ERA Series sensors and push buttons.
    • Compatible receivers: ERA-RXPG and other ERA receivers if added to the system.

    Key Features of the ERA-PRXPG Indoor Motion Kit

    • Complete indoor motion sensor kit with ERA-PIR transmitter and ERA-RXPG plug-in receiver.
    • Long wireless range up to 4,000 ft line-of-sight between sensor and receiver.
    • Selectable alert modes including sound only, strobe only, or sound with flashing strobe.
    • Adjustable monitoring zone to match typical doorways, aisles, and interior entrances.
    • Loud chime output with twelve tones and four volume levels up to approximately 95 dB.
    • Visual strobe indication for loud environments or users needing a visual cue.
    • Expandable system that supports multiple ERA transmitters and additional receivers.
    • Simple installation using a battery-powered sensor and plug-in receiver.

    What’s Included in the ERA-PRXPG Kit

    • One Safeguard Supply ERA-PIR indoor passive infrared motion sensor transmitter.
    • One Safeguard Supply ERA-RXPG plug-in wireless receiver with built-in flashing strobe.
    • Mounting hardware for the ERA-PIR sensor as supplied by the manufacturer.
    • User documentation covering setup and operation of both components.

    Product Specifications

    • System type: indoor motion sensor kit with plug-in strobe and chime receiver.
    • Kit model: ERA-PRXPG (Safeguard Supply ERA Series).
    • Motion sensor: ERA-PIR passive infrared indoor sensor/transmitter.
    • Receiver: ERA-RXPG plug-in door chime and strobe receiver.
    • Wireless range: up to 4,000 ft line-of-sight from sensor to receiver.
    • Power – sensor: 9V alkaline battery.
    • Power – receiver: plugs into standard 120V AC outlet.
    • Alert modes (receiver): sound only, strobe only, or sound plus strobe.
    • Volume: four levels, up to approximately 95 dB.
    • Melodies: 12 selectable chime tones.
    • Receiver capacity: up to 12 ERA transmitters per ERA-RXPG.
    • Receiver dimensions: about 4.75″ H x 2.75″ W x 1.5″ D.
    • Frequency: 433 MHz.
  • Safeguard Supply ERA-UTRXPG Wireless Entry Alert Kit with Strobe Receiver

    Safeguard Supply ERA-UTRXPG Wireless Entry Alert Kit with Strobe Receiver

    Flexible Wireless Entry Alert for Doors and Visitors

    The ERA-UTRXPG entry alert kit is built around two ERA Series components from Safeguard Supply: the ERA-UTX extended range universal transmitter and the ERA-RXPG plug-in strobe receiver. Together they create a wireless alert system that can be configured as a doorbell, a door contact entry alert, or a combination of both. The wireless range between transmitter and receiver is rated up to 4,000 feet in line-of-sight conditions, which is well suited for larger homes, offices, and commercial spaces where typical wireless doorbells do not reach.

    In a push button configuration, the ERA-UTX serves as the doorbell button at an entry door or gate. In a magnetic contact configuration, it monitors a door or gate and triggers the receiver whenever that opening is used. The ERA-RXPG then signals staff with a selected chime tone and a flashing strobe, or with strobe alone if sound is not desired.

    ERA-UTX Universal Transmitter: Push Button and Door Contact

    The ERA-UTX is a dual-function transmitter that can work either as a wireless push button or as a magnetic door/window sensor. In push button mode, the front button acts as a doorbell or call button. In door contact mode, a supplied magnet is aligned with the transmitter, and the device triggers when the magnet moves away as the door or window opens. In both cases, the ERA-UTX sends a radio signal to compatible ERA receivers.

    The unit is powered by a long-life lithium battery and is housed in a weather-resistant enclosure, allowing it to be used at covered exterior doors as well as interior locations. Its wireless range is rated up to 4,000 feet line-of-sight, which helps maintain a reliable link even through typical building materials such as walls and floors.

    • Transmitter type: dual-function push button and magnetic door contact.
    • Wireless range: up to 4,000 ft line-of-sight to ERA receivers.
    • Power source: CR123A lithium battery (included).
    • Housing: weather-resistant enclosure suitable for covered outdoor and indoor installations.
    • Indicators: LED used for test/activation confirmation.
    • Mounting: surface-mount on doors, frames, walls, or gate posts using included hardware.

    Using the ERA-UTX as a Push Button or Door Contact

    When used as a wireless doorbell button, the ERA-UTX is typically mounted near the main entry door or a side entrance where visitors arrive. Pressing the button sends a signal to the ERA-RXPG receiver and causes the chosen chime tone to play and, if configured, the strobe to flash. This setup functions like a long-range door chime and is suitable for front doors, service doors, and gates.

    In door contact mode, the ERA-UTX is installed with its magnetic contact on a door or gate, and the magnet is aligned with the sensor when the door is closed. Opening the door separates the magnet from the transmitter and triggers a wireless signal. This is commonly used for back doors, internal service doors, or restricted areas where staff need alerts whenever a door opens.

    • Push button mode: use the front button as a doorbell or call button for visitors or staff.
    • Door contact mode: monitor a door opening with the included magnet and trigger on open.
    • Typical locations: front doors, side entrances, warehouse doors, gates, or internal access doors.

    ERA-RXPG Plug-In Receiver with Strobe and Chime

    The ERA-RXPG is a plug-in wireless receiver designed to work with ERA transmitters including the ERA-UTX. It plugs into a standard 120V wall outlet and provides three operating modes: sound only, strobe only, or sound and strobe together. When the ERA-UTX sends a signal, the receiver plays the selected chime tone, flashes the strobe, or both, depending on the chosen mode.

    The receiver offers four volume levels up to approximately 95 dB at the highest setting, along with twelve selectable melodies. This allows different tones to be assigned to different transmitters if the system is expanded beyond the initial kit. The bright front-facing strobe makes it a good fit for noisy environments and for users who need a visual indicator in addition to sound.

    • Power: plugs into a standard 120V AC outlet.
    • Operating modes: sound only, strobe only, or sound plus strobe.
    • Volume: four adjustable levels up to roughly 95 dB.
    • Melodies: 12 selectable tones to differentiate transmitters or uses.
    • Wireless range: up to 4,000 ft line-of-sight from ERA transmitters.
    • Capacity: can learn up to 12 different ERA transmitters or sensors per receiver.
    • Approximate size: 4.75″ H x 2.75″ W x 1.5″ D.

    Entry Alert Operation with ERA-UTX and ERA-RXPG

    In a typical ERA-UTRXPG setup, the ERA-UTX is configured either as a push button or as a door contact and mounted at the location to be monitored. The ERA-RXPG is plugged into an outlet in an office, counter area, or other location where staff are present. When a visitor presses the button or opens the monitored door, the ERA-UTX transmits to the receiver and the ERA-RXPG responds with the programmed tone and strobe mode.

    If multiple ERA receivers are used in the building, the ERA-UTX can be learned into more than one device so the same event alerts people in different rooms. Likewise, additional transmitters can be added and assigned different melodies so staff can tell which door or button triggered the alert without looking at the receiver.

    • Alert path: push button press or door opening triggers sound and/or strobe at the receiver.
    • Placement flexibility: receiver can be plugged into any indoor outlet within range, and multiple receivers can be added if desired.
    • Multi-device use: one ERA-UTX can trigger more than one ERA-RXPG or other ERA receivers.

    ERA Series Compatibility and System Growth

    Both the ERA-UTX and ERA-RXPG belong to the Safeguard Supply ERA Series, which means they can integrate with a wide range of other ERA transmitters and receivers. Additional sensors such as driveway motion detectors, indoor PIR sensors, and wired doorbell extenders can be added and programmed to the same ERA-RXPG. Each transmitter can be assigned its own tone, making it straightforward to distinguish a front doorbell press from a warehouse door opening or a driveway sensor activation.

    There is also flexibility on the receiving side: you can add desktop receivers, portable vibrating receivers, or additional plug-in receivers to cover more areas without changing the original ERA-UTX installation. This makes the ERA-UTRXPG kit a starting point for a broader property-wide entry alert system based on a common 4,000-foot wireless platform.

    • Series: part of the Safeguard Supply ERA long-range wireless family.
    • Compatible transmitters: ERA-UTX plus other ERA push buttons, motion sensors, driveway sensors, and extenders.
    • Compatible receivers: ERA-RXPG, ERA-DCRX, ERA-VPRX, and additional ERA-RXPG units.

    Key Features of the ERA-UTRXPG Wireless Entry Alert Kit

    • Dual-purpose kit that can act as a wireless doorbell or a door contact entry alert.
    • Up to 4,000 ft wireless range between the ERA-UTX transmitter and ERA-RXPG receiver in line-of-sight conditions.
    • Weather-resistant transmitter suitable for covered outdoor use or indoor door monitoring.
    • Plug-in receiver with strobe providing sound only, strobe only, or combined alerts.
    • Loud chime output with four volume levels and twelve available melodies.
    • Expandable system supporting up to 12 transmitters per receiver and multiple receivers per transmitter.
    • Typical applications: store entrances, warehouse doors, office doors, gates, and general entry alert situations.

    What’s Included in the ERA-UTRXPG Kit

    • One Safeguard Supply ERA-UTX long-range universal transmitter (push button and magnetic door contact).
    • One Safeguard Supply ERA-RXPG plug-in wireless receiver with built-in strobe and chime.
    • Magnet and mounting hardware for door contact use of the ERA-UTX.
    • Lithium battery for the ERA-UTX transmitter (pre-installed or included).
    • User documentation for both ERA-UTX and ERA-RXPG components.

    Product Specifications

    • System type: wireless entry alert kit with universal transmitter and plug-in strobe receiver.
    • Kit model: ERA-UTRXPG (Safeguard Supply ERA Series).
    • Transmitter: ERA-UTX dual-function push button and magnetic door contact.
    • Receiver: ERA-RXPG plug-in chime and strobe receiver.
    • Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.
    • Power – transmitter: CR123A lithium battery.
    • Power – receiver: plugs into standard 120V AC outlet.
    • Alert modes (receiver): sound only, strobe only, or sound plus strobe.
    • Volume: four levels up to approximately 95 dB.
    • Melodies: 12 selectable tones.
    • Receiver capacity: up to 12 ERA transmitters or sensors per ERA-RXPG.
    • Receiver dimensions: about 4.75″ H x 2.75″ W x 1.5″ D.
    • Frequency: 433 MHz.
  • Safeguard Supply ERA-UTVPR Wireless Entry Alert and Portable Receiver Kit

    Safeguard Supply ERA-UTVPR Wireless Entry Alert and Portable Receiver Kit

    Portable Entry Alert for Doors, Gates, and More

    The ERA-UTVPR wireless entry alert kit combines two Safeguard Supply ERA Series components: the ERA-UTX extended range universal transmitter and the ERA-VPRX portable vibrating receiver. Together they create a flexible entry alert system that can act as a wireless doorbell, a door contact chime, or a combination of both. With a wireless range rated up to 4,000 feet in line-of-sight conditions, this kit is built for demanding commercial environments and larger properties.

    The ERA-UTX is installed at the door, gate, or opening that needs monitoring, while the ERA-VPRX goes wherever the user goes. When the button is pressed or the door opens, the transmitter sends a signal to the portable receiver, which can vibrate, sound a chime, or do both to get the user’s attention.

    ERA-UTX Universal Transmitter: Push Button and Door Contact

    The ERA-UTX is a dual-function transmitter that works as both a push button and a magnetic door/window contact. In push button mode, the front button serves as a doorbell or call button. In door contact mode, the included magnet is aligned with the side of the transmitter so that opening the door separates the magnet and triggers an alert. In either configuration, the ERA-UTX sends a wireless signal to compatible ERA receivers.

    The transmitter housing is weather-resistant, making it suitable for covered exterior doors as well as interior openings. It is powered by a CR2 lithium battery, chosen for long life in normal service. The wireless range is up to 4,000 feet line-of-sight, giving the system the reach needed for large facilities, multi-building sites, or long hallways.

    • Transmitter type: dual-function push button and magnetic door/window contact.
    • Wireless range: up to 4,000 ft line-of-sight to ERA receivers.
    • Power source: CR2 3V lithium battery.
    • Housing: weather-resistant enclosure suitable for covered outdoor and indoor use.
    • Dimensions: approximately 2.0″ W x 3.75″ H x 0.875″ D.
    • Frequency: 433 MHz.

    Using the ERA-UTX in Push Button and Door Contact Modes

    As a wireless doorbell button, the ERA-UTX is typically mounted near the main entrance, a side door, or a service door where visitors or drivers will press it for assistance. When the button is pressed, the transmitter sends a signal to the ERA-VPRX portable receiver, which alerts the user instantly. This setup works well for warehouses, retail stores, and offices that want a business-grade portable doorbell.

    In door contact mode, the transmitter is mounted on the door frame and the magnet is mounted on the moving door. When the door opens and the magnet moves away from the transmitter, the ERA-UTX sends an alert. This configuration is ideal for back doors, interior doors to restricted areas, or gates where staff need to know when someone enters or exits.

    • Push button applications: front doorbell, staff call button, drive-up or loading dock call.
    • Door contact applications: rear doors, stockroom entries, internal doors, or swing gates.
    • Mounting: surface-mount with screws or appropriate fasteners; magnet aligned closely for door contact use.

    ERA-VPRX Portable Receiver with Sound and Vibration

    The ERA-VPRX is a handheld, portable receiver that alerts users with sound, vibration, or both when an ERA transmitter is activated. It is powered by a rechargeable lithium-ion battery and is supplied with a charging cable and adapter. On a full charge, the receiver typically offers about six to seven days of standby time, depending on how often alerts are received and which modes are enabled.

    The receiver supports four volume levels up to roughly 80 dB and provides multiple melodies, allowing each transmitter to have its own unique tone. It can be set to sound only, vibrate only, or sound and vibrate simultaneously. A backlit display and indicator icons show when an alert arrives and provide basic information about the receiver’s status.

    • Alert modes: sound only, vibration only, or sound plus vibration.
    • Volume: four adjustable levels up to about 80 dB, plus mute.
    • Wireless range: up to 4,000 ft from ERA transmitters in line-of-sight conditions.
    • Power: rechargeable lithium-ion battery with charging cable and power adapter.
    • Battery life: approximately 6–7 days of standby time per charge, usage dependent.
    • Transmitter capacity: supports pairing with up to 16 ERA transmitters or sensors.
    • Dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: approximately -30°F to 120°F.

    Portable Entry Alerts for Busy Facilities

    With the ERA-UTVPR kit installed, a door opening or button press at the ERA-UTX immediately sends a signal to the ERA-VPRX portable receiver. Staff carrying the receiver feel the vibration, hear the selected tone, or both, ensuring they are aware of the event even if they are far from the door or in a noisy part of the building. Because the receiver is portable, it keeps working as the user moves between rooms, aisles, or buildings within range.

    If additional transmitters are added to the system—such as extra ERA-UTX units at other doors—each can be assigned a distinct melody. This enables the user to tell which door or area triggered the alert simply by listening, without needing to look at the display every time.

    • Alert path: push button press or door opening at ERA-UTX triggers sound and/or vibration on ERA-VPRX.
    • Mobility: receiver can clip onto a belt or fit in a pocket for continuous coverage.
    • Multi-point support: multiple transmitters can share the same receiver with unique tones.

    ERA Series Compatibility and Expansion

    Both the ERA-UTX and ERA-VPRX are part of the Safeguard Supply ERA Series, which supports a wide range of compatible transmitters and receivers. In addition to the included ERA-UTX, the ERA-VPRX can be paired with driveway sensors, indoor motion sensors, doorbell extenders, and additional push buttons, up to sixteen transmitters in total. Each transmitter can have its own melody and, if desired, its own vibration pattern and notification settings.

    The ERA-UTX transmitter can also be paired with other ERA receivers—such as desktop chime receivers or plug-in strobe receivers—if you later want both portable and fixed alerts. There is no fixed limit to the number of receivers that can listen to the same transmitter, so you can build a system that fits changing needs over time.

    • Series: Safeguard Supply ERA long-range wireless platform.
    • Compatible transmitters: ERA-UTX plus other ERA push buttons, motion sensors, driveway sensors, and extenders.
    • Compatible receivers: ERA-VPRX and additional ERA receivers such as ERA-DCRX and ERA-RXPG.

    Key Features of the ERA-UTVPR Wireless Entry Alert Kit

    • Dual-purpose kit that works as a wireless doorbell, door contact alert, or both.
    • Up to 4,000 ft wireless range between ERA-UTX transmitter and ERA-VPRX receiver in line-of-sight conditions.
    • Weather-resistant transmitter suitable for covered outdoor doors and indoor openings.
    • Portable receiver alerts with sound, vibration, or both for staff on the move.
    • Rechargeable design with approximately 6–7 days of standby time per charge.
    • Expandable system that can support up to 16 transmitters and multiple receivers.
    • Typical applications: warehouses, retail shops, offices, gates, and internal doors needing mobile alerts.

    What’s Included in the ERA-UTVPR Kit

    • One Safeguard Supply ERA-UTX universal transmitter (push button and magnetic door contact).
    • One Safeguard Supply ERA-VPRX portable receiver with sound and vibration.
    • Magnet and mounting hardware for door contact use of the ERA-UTX.
    • CR2 lithium battery for the ERA-UTX transmitter.
    • Charging cable and power adapter for the ERA-VPRX receiver.
    • User documentation for both ERA-UTX and ERA-VPRX components.

    Product Specifications

    • System type: wireless entry alert / portable doorbell kit.
    • Kit model: ERA-UTVPR (Safeguard Supply ERA Series).
    • Transmitter: ERA-UTX dual-function push button and magnetic door contact.
    • Receiver: ERA-VPRX portable vibrating and audible receiver.
    • Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.
    • Power – transmitter: CR2 3V lithium battery.
    • Power – receiver: rechargeable lithium-ion battery with included charger.
    • Alert modes (receiver): sound only, vibration only, or sound plus vibration.
    • Volume: four adjustable levels up to approximately 80 dB, plus mute.
    • Transmitter capacity (receiver): up to 16 ERA transmitters or sensors can be paired.
    • Receiver dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
    • Operating temperature: approximately -30°F to 120°F.
    • Frequency: 433 MHz.
  • Adjustable Volume Siren: SS-PSIREN-W

    Adjustable Volume Siren: SS-PSIREN-W

    Volume Control Features

    The SS-PSIREN-W delivers precise volume adjustment from 85-120dB. Its piezo technology ensures efficient, reliable operation with customizable output levels.

    Piezo Siren Benefits

    Professional alert control:

    • Wide Volume: 85-120dB range
    • Dual Sounds: Two tone options
    • Efficient: ≤100mA current
    • Compact: 4.75″H x 3.27″W
    • Durable: All-weather design

    Custom Alert Applications

    Perfect for various needs:

    • Warehouses: Adjustable alerts
    • Production: Sound control
    • Mixed Areas: Variable volume
    • Quiet Zones: Lower settings
    • Noisy Spaces: Maximum output

    Technical Specifications

    Performance:

    • Volume: 85-120dB at 5ft
    • Power: 12V DC
    • Current: ≤100mA
    • Size: 4.75″H x 3.27″W x 0.94″D
    • Weight: 1.95oz

    Operation:

    • Temperature: 14-122°F
    • Controls: Internal volume knob
    • Sounds: Two options
    • Mount: Wall installation
    • Protection: Weather-resistant

    Installation Guide

    Simple setup process:

    1. Access internal controls
    2. Connect 12V power
    3. Mount unit
    4. Set volume level
    5. Select sound option

    Compatibility

    Works with:

    • ERA-UTDCR system
    • ERA-DCRX receiver
    • 12V DC outputs
    • Terminal connections
    • Alert controllers

    Package Contents

    • 1 x SS-PSIREN-W
    • Mounting hardware
    • Instructions manual
    • Wiring guide
    • Warranty card
  • Budget Doorbell Kit: SS110

    Budget Doorbell Kit: SS110

    Affordable Door Chime Features

    The SS110 delivers impressive performance at an economical price point. With adjustable volume up to 90dB and customizable melodies, this system ensures clear notifications throughout your home.

    Value Door Alert Benefits

    Cost-effective functionality:

    • Powerful Range: Up to 1,000ft coverage
    • Volume Control: 25-90dB adjustable
    • Multiple Tones: 52 selectable chimes
    • Easy Install: Plug-and-play design
    • Weather Ready: Protected push button

    Economy Doorbell Applications

    Perfect for various needs:

    • Home Use: Complete coverage
    • Small Business: Customer alerts
    • Multiple Rooms: Add extra receivers
    • Outdoor Areas: Weather-resistant
    • Growing Needs: Expandable system

    Technical Specifications

    Receiver Features (SS135):

    Ss135 Plugin Wireless Receiver Jpg
    • Size: 3.25″W x 3.25″L x 2.00″D
    • Power: 110V-220V AC
    • Frequency: 433.92 MHz
    • Temperature: -30°C to 70°C
    • Memory: Saves settings

    Push Button (SS111):

    • Size: 2.75″L x 1.5″W x 0.75″D
    • Battery: 12V 23A Alkaline
    • Power Use: <10mW
    • LED: Visual confirmation
    • Construction: ABS material

    Package Contents

    • 1 x SS135 receiver
    • 1 x SS111 push button
    • 1 x 12V battery
    • Mounting hardware
    • User manual

    Expandability

    Compatible with:

    • Additional SS135 receivers
    • Extra SS111 push buttons
    • SS131 door contacts
    • SS141 motion sensors

    Installation Guide

    The SS110 features simple setup:

    1. Mount button with tape/screws
    2. Plug in receiver
    3. Program button to receiver
    4. Select preferred chime
    5. Adjust volume level
    Wc180 Ss Safeguard Supply Ss111 Image 2 1 Png

    Video to Illustrate programming/pairing

    The short video below demonstrates how to program or pair a sensor/transmitter to the receiver. In the video, the user is programming a magnetic door contact to the receiver. For programming, the SS111 push button push the button in the center of the push button rather than separating the magnetic as the user does in this video.

    How to Program the Push Button to the Receiver.

    .

    1. Scroll down through the available melodies using the up/down scroll button on the side of the receiver (see the image below).
    2. Once you find the melody you want the receiver to play for the push button, stop scrolling.
    3. Hold the volume button (see image below) for approximately 5 seconds until you hear a quick chime sound, and the blue LED starts flashing rapidly. This denotes the receiver is in pairing mode.
    4. Within 5 seconds, push the center push button.
    5. You should hear the selected melody play, and the blue LED on the receiver will flash with the chosen melody.
    6. If you do not have any other sensors/transmitters to pair, programming/pairing is complete.
    7. If you have another sensor/transmitter to program, go back to step 1 above.

    How to Install the SS111 Push Button

    The push button in this kit is the SS111. It is outdoor rated and is mounted using double-sided tape or the included mounting screws. Separate the top half of the push button from the lower half. Mount the lower half (using double-sided tape or screws), and remove the small piece of paper from the battery terminal (see graphic below).

    Wc180 Ss Safeguard Supply Ss111 Png

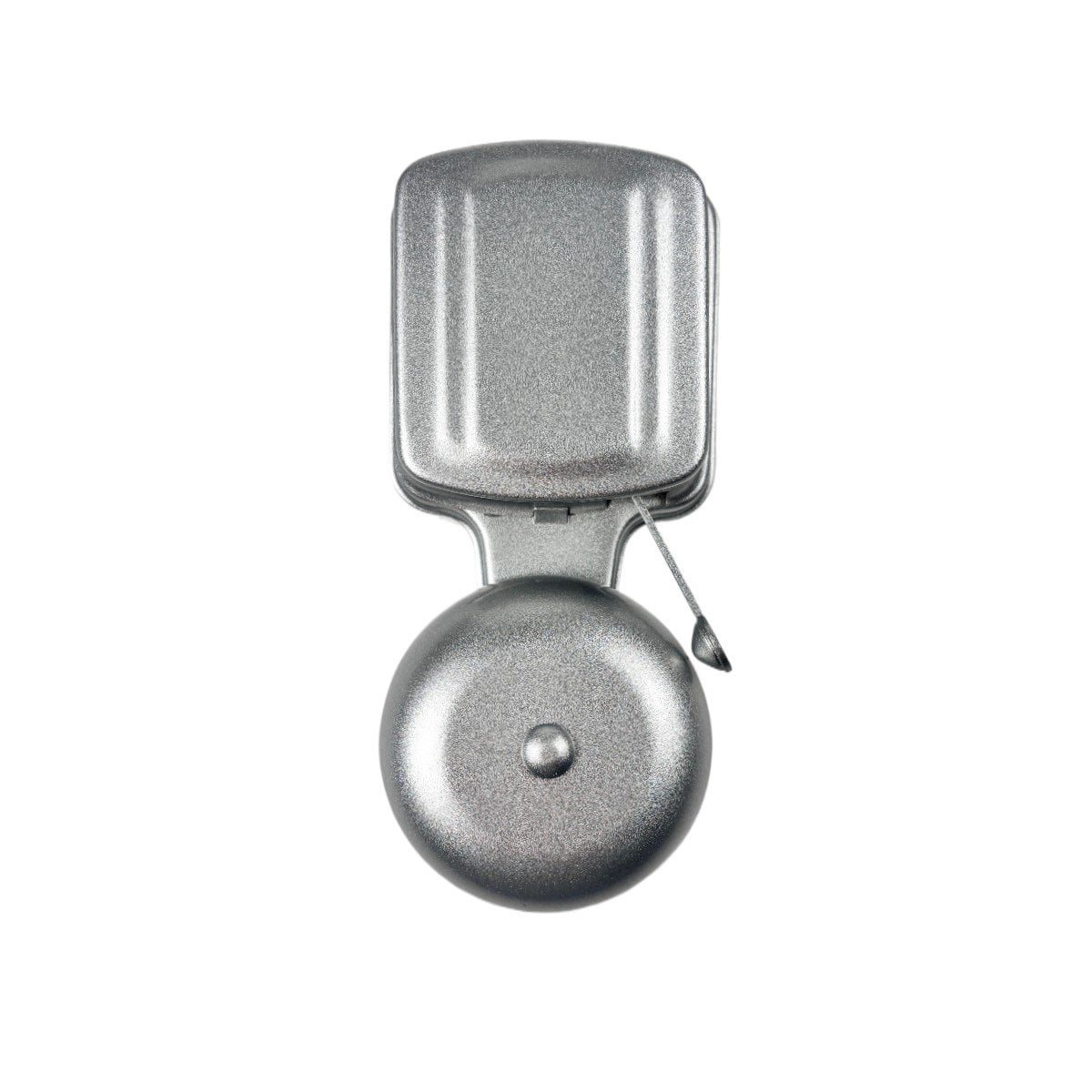

  • Chrome Door Bell: DB-2000

    Chrome Door Bell: DB-2000

    Shop Entry Alert Features

    The DB-2000 delivers clear notifications in busy environments. Its compact size and powerful output ensure alerts are heard where needed.

    Business Buzzer Benefits

    Professional-grade alerts:

    • Versatile Power: 4.5-12V DC/8-16V AC
    • Compact Size: 2.5-inch diameter
    • Durable Build: Chrome finish
    • Simple Setup: Basic wiring
    • Single Door: Focused operation

    Industrial Bell Applications

    Perfect for various settings:

    • Retail Shops: Entry alerts
    • Loading Docks: Delivery notification
    • Warehouses: Clear signals
    • Service Areas: Staff alerts
    • Receiving: Delivery notices

    Technical Specifications

    Performance:

    • Size: 2.5″ diameter
    • Power: 4.5-12V DC/8-16V AC
    • Operation: Single door
    • Finish: Chrome plated
    • Mount: Wall installation

    Required Components

    Complete installation needs:

    • 16V 10VA transformer
    • Doorbell push button
    • Bell wire
    • Mounting hardware
    • Junction box

    Compatibility

    Works with:

    • Standard transformers
    • Wired push buttons
    • Multiple button types
    • Common bell wire
    • Various mounting boxes

    Installation Guide

    Basic wiring required:

    1. Mount transformer
    2. Install push button
    3. Run bell wire
    4. Connect buzzer
    5. Test system
  • Cordless Door Bell Button: LRA-PBTXA-L

    Cordless Door Bell Button: LRA-PBTXA-L

    Lighted Push Button Features

    The LRA-PBTXA-L enhances visitor experience with its illuminated design. The distinctive green LED halo provides clear visual feedback when pressed, confirming signal transmission to receivers.

    Weather Resistant Button Benefits

    Built for outdoor reliability:

    • LED Halo: Green confirmation light
    • Durable Housing: All-weather protection
    • Easy Access: Simple battery changes
    • Clean Design: Modern white finish
    • Quick Install: Tape or screw mount

    Wireless Button Applications

    Perfect for multiple entrances:

    • Front Door: Primary entrance
    • Side Entry: Service access
    • Back Door: Delivery area
    • Remote Gates: Extended coverage
    • Multiple Zones: Distinct chimes

    Technical Specifications

    Button Features:

    • Dimensions: 3″H x 1.25″W x 1″D
    • Range: Up to 1,000 feet
    • Power: CR2032 battery included
    • Illumination: Green LED halo
    • Rating: Outdoor weatherproof
    • Warranty: 1-year coverage

    Installation Options

    Choose your mounting method:

    • Double-sided adhesive tape
    • Mounting screws
    • Tool-free installation
    • Easy battery access
    • Quick receiver pairing

    Compatibility

    Works with:

    • LRA-DCRX receiver
    • LRA-DCRXS plugin receiver
    • All LRA series products
    • Multiple zone support
    • Unlimited receivers

    Setup Guide

    The LRA-PBTXA-L offers simple installation. Mount using included hardware or tape, insert battery, and pair with your LRA receiver for immediate operation.

  • Wireless Door Alert System: ERA-UTDCR

    Wireless Door Alert System: ERA-UTDCR

    Long Range Door Alert Features

    The ERA-UTDCR delivers powerful transmission capabilities through walls and obstacles. Its advanced design ensures reliable alerts across large facilities, eliminating communication dead zones.

    Long Range Door Alert System Features

    The ERA-UTDCR sets the industry standard with its guaranteed 4,000ft range. Unlike consumer-grade systems that struggle with commercial buildings, this system efficiently penetrates steel, concrete, and complex structural layouts. This exceptional range ensures consistent communication across your entire facility, eliminating dead zones and missed alerts.

    Warehouse Security Alert Benefits

    Future-proof your investment with the ERA-UTDCR‘s expandable design. Each system supports up to 12 different transmitters—from push buttons to motion sensors and door contacts. Pair these with unlimited receivers to create a comprehensive alert network that covers every corner of your operation.

    Comprehensive facility coverage:

    • Multiple Transmitters: Up to 12 devices
    • Zone Programming: 4 distinct areas
    • Alert Options: Customizable chimes
    • Range: 4,000ft coverage
    • Expandable: Unlimited receivers

    Business Entrance Notification System Applications

    Perfect for multiple settings:

    • Loading Docks: Delivery alerts
    • Customer Entrances: Visitor monitoring
    • Employee Access: Staff tracking
    • Remote Buildings: Extended coverage
    • Restricted Areas: Security notifications

    Commercial Door Chime System Specifications

    System Features:

    • Operating Range: Up to 4,000 feet
    • Transmitter Capacity: 12 maximum (works with any ERA-compatible receiver)
    • Receiver Capacity: Unlimited
    • DC Outputs: 4 x 12V
    • Relay Type: C-FORM (N/O and N/C contacts)
    • Installation: Plug-and-play
    • Weather Resistance: Transmitter – Yes; Receiver – No

    Package Contents

    • 1 x ERA-DCRX receiver unit
    • 1 x ERA-UTX transmitter (configurable as push button or magnetic door contact)
    • 1 x 12V DC power adapter
    • 1 x 3V CR-2 battery for ERA-UTX
    • Mounting hardware for ERA-UTX
    • User manual

    Compatibility

    • ERA-UTX transmitter
    • ERA-DSTX motion sensor
    • ERA-PIR sensor
    • ERA-PBTX push button
    • ERA-EXTX doorbell transmitter

    Installation and Setup

    The ERA-UTDCR features plug-and-play installation that minimizes business disruption. The system requires no specialized tools or technical expertise, allowing quick deployment and immediate operation. Built for commercial durability, it features weather-resistant construction suitable for indoor and outdoor installation.

  • Door Bell Wireless System: LRA-D1000-L

    Door Bell Wireless System: LRA-D1000-L

    Strobe Alert Features

    The LRA-D1000-L combines audio and visual notifications for complete coverage. Choose between sound, strobe, or both to ensure alerts are noticed in any environment.

    Battery Powered Chime Benefits

    Flexible operation options:

    • Dual Power: Battery or AC adapter
    • Extended Range: Up to 1,000 feet
    • Volume Levels: Up to 90dB
    • Visual Alerts: LED strobe light
    • Zone Control: 4 LED indicators

    Wireless Doorbell Applications

    Perfect for multiple settings:

    • Large Homes: Complete coverage
    • Small Businesses: Customer alerts
    • Quiet Areas: Silent strobe mode
    • Noisy Spaces: Dual notifications
    • Multi-Door Setups: Distinct zones

    Technical Specifications

    Receiver Features:

    • Dimensions: 6.60″H x 5.30″W x 1.70″D
    • Melodies: 32 selectable tones
    • Zones: 4 with LED indicators
    • Power: 3 C batteries or AC adapter
    • Frequency: 915 MHz
    • Volume: Up to 90dB

    Push Button Features:

    • Dimensions: 3.00″H x 1.25″W x 1.00″D
    • Weather-Resistant: Outdoor rated
    • Battery: Long-life lithium included
    • LED Indicator: Transmission confirmation
    • Lifespan: 2-3 year battery life

    Package Contents

    • 1 x LRA-DCRX receiver
    • 1 x LRA-PBTX push button
    • 1 x Lithium battery (button)
    • Mounting hardware
    • User manual

    Compatibility

    Works with:

    • Additional LRA-PBTX-L buttons
    • LRA-EXTX-L doorbell extender transmitter
    • LRA-DCRXS-L plugin receiver with strobe light

    Installation Guide

    The LRA-D1000-L features simple setup with flexible power options. Install batteries or connect power adapter, mount components, and enjoy immediate coverage.

    Model Product Features

    LRA-D1000-L Specifications:

    • Expansive Range: Enjoy up to 1,000 feet of wireless coverage.
    • Selector Switch: Tailor your alert system with flash, chime, or both options.
    • High Compatibility: Works with LRA series transmitters for a fully integrated system.
    • Volume Control: Adjust to suit your environment, with a maximum output of 80 dB.
    • Multiple Melodies: Choose from 32 melodies to customize your notification sounds.
    • Flexible Powering Options: Operate with 3 C batteries or a plug-in wall transformer (not included).

    LRA-PBTX Push Button Features:

    • Mounts to wall using supplied mounting hardware
    • Outdoor rated
    • Hi-powered Lithium battery included. Expect 2-3 year battery life
    • Connect up to 4- push buttons to the LRA-DCRX receiver
    • Up to 1,000 ft. range
    • Green LED flashes to show signal transmitting
    • Choose a distinct sound for each connected push button
    • When a visitor pushes a button, the receiver plays a selected melody, flashes, or both
    • The push button (LRA-PBTX) is 3.00”(H) x 1.25”(W) x 1.00”(D)

    LRA-DCRX Receiver Features

    • Add up to four transmitters (sensors) per receiver
    • Long Range up to 1,000 Feet * This is a line-of-site estimate.  Environmental factors such as exterior and interior walls, metal, construction materials, etc., will reduce the effective range of the product
    • The product ships with one receiver (batteries not included) and one wireless push button (batteries included)
    • Volume Control
    • 915 Mhz Operating Frequency
    • You can turn the volume off with the side selector switch.
    • Maximum volume is 90dB
    • 32 User Selectable Melodies
    • Flexible Learning Codes
    • 4 Bright Zone Indicator Lights
    • Powered by 3 C Batteries or a plug-in wall transformer (not included)
    • Compatible with sensors like the LRA-DCTX wireless window/door contacts and LRA-MSTX PIR motion sensor,  available at additional cost
    • Additional push buttons are available
    • LRA-DCRX Receiver: 6.60”(H) x 5.30” (W) x 1.70”(D)

    Elevate your property’s security and convenience with the LRA-D1000-L Wireless door bell system from Safeguard Supply. Whether for home or business, its exceptional range and customizable features make it the perfect choice.

  • Safeguard Supply ERA-PRDCR Indoor Motion Sensor Entrance Alert

    Safeguard Supply ERA-PRDCR Indoor Motion Sensor Entrance Alert

    Indoor Motion Entrance Alert Kit for Business and Commercial Use

    The ERA-PRDCR motion entrance alert kit combines the ERA-PIR motion sensor transmitter with the ERA-DCRX multi-zone receiver to create a long-range wireless entrance alert system. The kit is designed for doors, interior passages, and open areas where it is important to know when someone has entered or moved through a monitored space. With a wireless range rated up to 4,000 feet in line-of-sight conditions, the sensor and receiver can be separated by significant distance while still maintaining communication.

    In this configuration, the ERA-PIR is installed at the entrance or area to be monitored, and the ERA-DCRX is placed where staff can hear and see the alerts—often at a service counter, office, or back room. When a person passes through the sensor’s coverage area, the receiver plays a selected tone for a few seconds and can also operate low-voltage outputs or a relay for connected equipment.

    ERA-PIR Passive Infrared Motion Sensor Transmitter

    The ERA-PIR is an indoor passive infrared (PIR) motion sensor that detects the combination of heat and movement as people walk through its monitored zone. When motion is detected, the sensor’s built-in transmitter sends a radio signal to the ERA-DCRX receiver. The transmission range is rated up to 4,000 feet in line-of-sight conditions, allowing the sensor and receiver to be located in different parts of a building or even separate buildings on the same property, as long as the path is within range and not overly obstructed.

    The ERA-PIR features an adjustable monitoring pattern so the coverage width and depth can be matched to the entrance or hallway being protected. Typical use is to mount the sensor above or beside a doorway so that people walk through the detection field when they enter. The sensor is powered by a 9V alkaline battery and includes a test button for programming and verification.

    • Detection method: indoor passive infrared sensing for people moving through the monitored zone.
    • Transmission range: up to 4,000 ft line-of-sight to compatible ERA receivers.
    • Power source: 9V alkaline battery.
    • Typical coverage: adjustable monitoring area suitable for standard doorways and interior corridors.
    • Mounting options: wall or ceiling near entrances, aisles, or open areas.
    • Compatibility: works with ERA-DCRX and other ERA Series receivers.

    Placement and Setup of the ERA-PIR Entrance Sensor

    For entrance alert applications, the ERA-PIR is commonly mounted above the inside of a door or on the wall adjacent to the doorway, angled so that people pass through the detection pattern as they enter or exit. Mounting height is chosen to provide a clear view of the area without obstruction from door frames, shelving, or signage. The sensor’s coverage can be adjusted to narrow or widen the monitored zone, which helps avoid triggering on movement outside the intended path.

    During setup, the installer pairs the ERA-PIR with the ERA-DCRX by placing the receiver into programming mode, then triggering the sensor either by walking through the field of view or pressing the built-in test button. After pairing, a melody is selected for the zone that the sensor is assigned to, allowing the entrance alert tone to be distinguished from alerts from other transmitters in the system.

    • Typical mounting locations: above entry doors, at hallway openings, or overlooking interior aisles.
    • Orientation: aim across the walking path rather than directly at it for more reliable motion detection.
    • Programming: pairs to a specific zone on the ERA-DCRX and can be assigned a unique melody.

    ERA-DCRX Multi-Zone Receiver with Outputs

    The ERA-DCRX is a desktop or wall-mountable receiver designed for commercial and business environments. It supports four programmable zones, with each zone able to handle multiple ERA transmitters. When a programmed transmitter such as the ERA-PIR activates, the receiver plays the tone assigned to that zone and indicates which zone was triggered using its indicator lights.

    The ERA-DCRX offers twelve selectable melodies and four volume levels, with the maximum volume reaching approximately 85–90 dB. This allows the entrance alert to be heard over typical background noise in shops, offices, and warehouses. The receiver is powered by a 12V DC adapter and is designed to sit on a desk or counter or be mounted on a wall as needed.

    • Zones: 4 programmable zones for organizing transmitters by area.
    • Melodies: 12 tones that can be assigned per zone.
    • Volume: four levels with a maximum around 85–90 dB.
    • Power: 12V DC plug-in power adapter.
    • Wireless range: up to 4,000 ft line-of-sight to ERA transmitters.
    • Receiver capacity: supports up to 12 transmitters or sensors in total, with multiple per zone.

    12VDC Outputs and C‑FORM Relay for External Devices

    One of the distinguishing features of the ERA-DCRX receiver is its set of low-voltage outputs and a C‑FORM relay that can be used to integrate external devices. Each of the four zones has its own 12V DC output that can be configured to activate when a transmitter on that zone is triggered. This output can drive compatible accessories such as small strobes, bells, or buzzers within the rated current limits.

    In addition to the zone outputs, the receiver includes a single C‑FORM (changeover) relay that can be assigned to one or more zones. The relay can be wired to an external system that requires a dry contact input, such as a larger alarm panel, automation controller, or other signaling equipment. The duration of the relay activation can be matched to the programmed 12V output time (for example, 5 seconds, 10 seconds, 1 minute, or 2 minutes) depending on the configuration.

    • Zone outputs: four 12V DC outputs, one per zone, for low-voltage accessories.
    • Relay: one C‑FORM relay assignable to one or multiple zones.
    • Output duration: selectable activation time (commonly 5 seconds to 2 minutes) tied to zone settings.
    • Integration examples: strobes, external sounders, building systems, or dialers that react to an entrance alert.

    How the ERA-PRDCR Entrance Alert Kit Functions

    In daily use, the ERA-PIR watches for movement at an entrance or interior passage, while the ERA-DCRX sits where staff can hear and see its alerts. When someone enters the monitored area, the motion sensor transmits to the receiver. The receiver then plays the melody associated with that sensor’s zone and, if configured, activates the corresponding 12V output and relay.

    Because the receiver supports four zones and multiple transmitters per zone, the ERA-PRDCR kit can be the foundation of a larger entrance alert system. Additional ERA-PIR sensors, door contact transmitters, push buttons, or driveway sensors can be added in other areas, each with its own tone and zone indicator. This allows users to tell at a glance—and by sound—whether motion came from the front door, back hallway, warehouse entrance, or another monitored location.

    • Alert path: motion at entrance triggers sound and indicator lights on the ERA-DCRX, plus optional 12V/relay outputs.
    • Multi-zone capability: up to four zones, each with individual tone and output options.
    • Scalability: supports multiple transmitters and can be combined with additional ERA receivers if needed.

    ERA Series Compatibility and Expansion

    Both the ERA-PIR and ERA-DCRX are part of the Safeguard Supply ERA Series. The ERA-PIR can also be paired with other ERA receivers such as plug-in units or portable receivers that may be added later, and the ERA-DCRX can be programmed to work with other ERA transmitters beyond the included motion sensor. There is no fixed limit to the number of ERA-DCRX receivers that can listen to a single ERA-PIR, so the same motion event can be heard at several locations by adding more receivers.

    This compatibility allows the ERA-PRDCR to fit into a larger system that may include entrance alerts, driveway alerts, doorbells, and other wireless signaling devices, all sharing the same 4,000-foot wireless platform.

    • Series: Safeguard Supply ERA long-range wireless system.
    • Compatible transmitters: ERA-PIR and other ERA sensors and push buttons.
    • Compatible receivers: ERA-DCRX plus additional ERA receivers added as separate components.

    Key Features of the ERA-PRDCR Motion Entrance Alert Kit

    • Complete indoor motion entrance alert kit with ERA-PIR sensor and ERA-DCRX receiver.
    • Up to 4,000 ft wireless range between sensor and receiver in line-of-sight conditions.
    • Four programmable zones on the receiver for organizing multiple entrances and areas.
    • Twelve selectable chime melodies and four volume levels up to approximately 85–90 dB.
    • Battery-powered motion sensor with 9V supply and adjustable monitoring pattern.
    • 12V DC outputs and C‑FORM relay for driving strobes, bells, or interfacing with other systems.
    • Expandable architecture that supports additional ERA transmitters and receivers.
    • Desk or wall mounting for the receiver, suitable for counters, offices, and control areas.

    What’s Included in the ERA-PRDCR Kit

    User documentation for both the ERA-PIR and ERA-DCRX components.

    One Safeguard Supply ERA-PIR indoor passive infrared motion sensor transmitter.

    One Safeguard Supply ERA-DCRX multi-zone wireless chime receiver with 12V outputs and relay.

    12V DC power adapter for the ERA-DCRX receiver.

    Mounting hardware for the ERA-PIR sensor as supplied by the manufacturer.

    Product Specifications

    • System type: indoor motion entrance alert kit with desktop receiver.
    • Kit model: ERA-PRDCR (Safeguard Supply ERA Series).
    • Motion sensor: ERA-PIR passive infrared indoor sensor/transmitter.
    • Receiver: ERA-DCRX four-zone chime receiver with outputs.
    • Wireless range: up to 4,000 ft line-of-sight from sensor to receiver.
    • Power – sensor: 9V alkaline battery.
    • Power – receiver: 12V DC plug-in adapter.
    • Zones (receiver): 4 programmable zones, multiple transmitters per zone.
    • Outputs: four 12V DC outputs (one per zone) and one C‑FORM relay.
    • Output duration: selectable activation time (commonly 5 seconds to 2 minutes).
    • Melodies: 12 selectable chime tones.
    • Volume: four levels, up to approximately 85–90 dB.
    • Receiver capacity: up to 12 transmitters or sensors per ERA-DCRX.
    • Frequency: 433 MHz.
  • Door Sensor With Chime: SS132

    Door Sensor With Chime: SS132

    Magnetic Contact Features

    The SS132 provides reliable door monitoring through advanced magnetic sensing. When doors open, the sensor instantly transmits alerts to any SS series receiver within range.

    Door Opening Alert Benefits

    Complete monitoring solution:

    • Extended Range: 600ft coverage
    • Simple Install: Tape mounting
    • Long Battery: Years of operation
    • Compact Size: 1″W x 2″H x ½”D
    • Discreet Design: Blends with trim

    Entry Monitoring Applications

    Perfect for multiple settings:

    • Home Security: Entry points
    • Child Safety: Room monitoring
    • Senior Care: Movement tracking
    • Business Use: Access control
    • Retail: Customer entrance alerts

    Technical Specifications

    Sensor Features:

    • Range: Up to 600 feet
    • Power: 12V 23A battery
    • Main Unit: 1″W x 2″H x ½”D
    • Magnet: ½”W x 2″H x ½”D
    • Installation: Tape mount
    • Battery Life: Multiple years

    Package Contents

    • 1 x SS132 sensor unit
    • 1 x Magnetic contact
    • 1 x 12V 23A battery
    • Double-sided tape
    • User manual

    Compatibility

    Works with:

    • SS135 plugin receiver
    • SS155 series receivers
    • Multiple receiver setup
    • All SS series products

    Installation Guide

    The SS132 features tool-free setup:

    • Pair with receiver
    • Clean mounting surfaces
    • Apply double-sided tape
    • Align sensor and magnet
    • Insert battery
  • Doorbell Chime Extender: LRA-EX1000S-L

    Doorbell Chime Extender: LRA-EX1000S-L

    Wired to Wireless System Features

    The LRA-EX1000S seamlessly integrates with your existing doorbell. When someone rings your wired doorbell, both your original chime and wireless receivers activate, ensuring notifications reach every corner of your home.

    Extra Doorbell Chime Benefits

    Extended notification options:

    • Dual Door Support: Front and second door compatible
    • Multiple Alerts: Sound, strobe, or both
    • Easy Installation: Simple 3-wire connection
    • Long Battery: 3-4 year lithium cell
    • Flexible Placement: Standard outlet power

    Plug-in Chime Applications

    Perfect for various needs:

    • Multiple Floors: Add upstairs notifications
    • Remote Areas: Extend to garages
    • Quiet Zones: Strobe-only mode
    • Loud Spaces: Combined alerts
    • Distance Coverage: Up to 1,000ft range

    Technical Specifications

    Transmitter Features:

    • Model: LRA-EXTX
    • Size: 2.25″ x 2.25″ x 0.5″
    • Power: CR123A lithium battery
    • Connections: Front, second, common
    • Range: Up to 1,000ft

    Receiver Features:

    • Model: LRA-DCRXS
    • Power: Standard outlet
    • Modes: Sound, strobe, both
    • Melodies: 18 options
    • Zones: 2 transmitter support

    Package Contents

    • 1 x LRA-EXTX transmitter
    • 1 x LRA-DCRXS receiver
    • 1 x CR123A battery
    • Mounting hardware
    • User manual

    Compatibility

    Works with:

    • Standard wired doorbells
    • Additional LRA-DCRXS receivers
    • Front and second door buttons
    • Traditional doorbell transformers
    • DOES NOT WORK with video doorbells

    Installation Guide

    The LRA-EX1000S connects to your existing doorbell’s terminal screws. Install transmitter at doorbell, plug in receiver, program, and enjoy expanded coverage.

  • Doorbell Extender Chime Kit: LRA-EX1000-L

    Doorbell Extender Chime Kit: LRA-EX1000-L

    Additional Door Chime Features

    The LRA-EX1000-L combines the LRA-EXTX-L transmitter with the versatile LRA-DCRX-L receiver. When visitors press your existing doorbell, both your original chime and wireless receiver activate, ensuring alerts reach every corner of your home.

    Home Chime Extension Benefits

    Complete coverage solution:

    • Dual Operation: Original plus wireless chimes
    • Power Choice: Battery or AC adapter
    • Multiple Alerts: Sound, strobe, or both
    • Two-Door Ready: Front and back support
    • Custom Sounds: 18 melody options

    Extended Alert Applications

    Perfect for multiple areas:

    • Upper Floors: Add sound upstairs
    • Basements: Never miss visitors
    • Garages: Clear notifications
    • Home Offices: Stay connected
    • Outdoor Spaces: Extend coverage

    Technical Specifications

    Kit Contents:

    • LRA-EXTX-L transmitter
    • LRA-DCRX-L receiver
    • Mounting hardware
    • Batteries included
    • User manual

    System Features:

    • Range: Up to 1,000 feet
    • Voltage: 9-18V AC compatible
    • Battery Life: 3-4 years (transmitter)
    • Melodies: 18 selections
    • Zones: 2 door support

    Installation Guide

    Simple two-part setup:

    1. Wire transmitter to existing chime
    2. Place receiver anywhere needed
    3. Power up both units
    4. Pair devices
    5. Select preferred melodies

    Expandability

    Works with:

    • Additional LRA receivers
    • Multiple door buttons
    • Extra LRA transmitters
    • All LRA series products
  • Doorbell Range Extender System: ERA-EXKIT

    Doorbell Range Extender System: ERA-EXKIT

    In today’s dynamic world, missing an important delivery or a visitor can be more than just an inconvenience; it can disrupt your day. Safeguard Supply recognizes this challenge and offers a brilliant solution with the ERA-EXKIT, a long-range wireless doorbell extender designed to ensure you never miss a beat.

    Add Wireless Chimes to Your Existing Doorbell to Make it Louder

    The ERA-EXKIT seamlessly connects to your wired doorbell system, letting you add wireless receivers anywhere in your property. When someone presses your doorbell button, both your original chime and wireless receivers activate simultaneously, ensuring you never miss a visitor.

    The process is simple: when someone presses your wired doorbell button, your wired doorbell (typically hanging in the foyer of your home) chimes as normal. The action that triggeres your doorbell to chime will trigger the ERA-EXTX wired into the doorbell to transmit a signal to the receiver(s), which then chimes in harmony with your traditional doorbell. You can place additional receivers where the original doorbell’s sound doesn’t reach, such as basements, garages, or distant offices, ensuring comprehensive coverage across your premises.

    ERA-EXTX-Wired into a doorbell

    Extend Doorbell Range Throughout Your Property

    • Place wireless receivers exactly where you need them:
    • Basement or Garage: Hear visitors while working
    • Back Yard: Never miss deliveries while outside
    • Upstairs Rooms: Perfect notification coverage
    • Home Office: Stay aware while working
    • Outbuildings: Extend range to detached structures

    Doorbell Upgrade System Benefits

    The ERA-EXKIT enhances your existing doorbell:

    • Optional Strobe: Visual alerts for noisy areas
    • Keep Original Doorbell: Works alongside your wired system
    • Easy Installation: Simple three-wire connection
    • Multiple Receivers: Add as many as needed
    • Volume Control: Adjust sound levels for each location

    ERA-EXKIT Model Product Features

    • Extended Range: Enjoy up to 4,000 ft of wireless range, ensuring coverage for homes and businesses of any size.
    • Volume Control: Tailor the volume to your environment, ensuring alerts are never missed and always at the right level.
    • Bright Flashing Strobe Light: Enhance alert visibility with an optional strobe light, ideal for noisy environments or those with hearing impairments.
    • Compatibility: Seamlessly integrates with all ERA receivers and transmitters for a customizable and expandable alert system.
    • Easy Installation: Quick setup with minimal tools required, offering a hassle-free solution to extend your doorbell’s reach.
    • Multiple Chime Options: Select from 12 distinct chimes for personalized notification sounds that fit your style and needs.

    ERA-RXPG Plugin Receiver in the Kit

    • The ERA-EXTX transmitter is powered by a long-lasting lithium battery with a life expectancy of 3-4 years.
    • The ERA-RXPG plugins into a standard wall outlet.
    • The ERA-EXTX works with traditional 4V-24V wired doorbells.
    • The range of the extender to the receiver is 4,000 ft.
    • The ERA-RXPG will work with up to 12 different transmitters/sensors.
    • Works with standard “Ding-Dong” wired doorbells.  NOT COMPATIBLE WITH VIDEO DOORBELLS.
    • The transmitter works with front and back door pushbuttons wired into the same wired doorbell.
    • The receiver has volume control and three operation modes: sound only, strobe, strobe, and sound.
    • If enabled, the strobe will flash for approximately 15 seconds.
    • Manufactured by Safeguard Supply.
    • One-year manufacturer’s warranty.

    The ERA-EXKIT is a testament to Safeguard Supply’s commitment to providing solutions that enhance the way we live and work. With its unparalleled range, ease of use, and flexibility, it stands as a top choice for extending the functionality of wired doorbells.

    Package Contents

    • 1 x ERA-EXTX transmitter
    • 1 x ERA-RXPG receiver
    • 1 x Lithium battery
    • Mounting hardware
    • User manual

    Compatibility

    • Standard “Ding-Dong” doorbells
    • All ERA Products
    • Not compatible with video doorbells or doorbells with Electronic circuit boards

    Installation and Setup

    The ERA-EXKIT installs easily at your existing doorbell location. Connect three wires to your current doorbell, and plug receivers into any standard outlet. No special tools or expertise required for basic installation.

    Ready to Extend Your Doorbell’s Reach?

    Explore the benefits of the ERA-EXKIT and ensure your home or business never misses an important visitor or delivery again. With Safeguard Supply, staying connected across every corner of your property has never been easier.

  • Strobe Light Doorbell System: ERA-DCKIT

    Strobe Light Doorbell System: ERA-DCKIT

    Strobe Light Door Chime Notification System Features

    The ERA-DCKIT revolutionizes visitor alerts with its exceptional 4,000ft transmission range and integrated strobe technology. This premium alert solution penetrates walls and floors, combining powerful visual signals with customizable audio alerts to ensure notifications are never missed.

    Dual-Alert Entry System Capabilities

    Experience complete awareness with multi-sensory technology:

    • Visual Alerts: 15-second strobe light activation
    • Adjustable Audio: Four volume levels
    • Combined Alerts: Simultaneous audio-visual notification
    • Customizable Settings: Independent control of visual and audio alerts

    Multi-Sensory Alert Applications

    The ERA-DCKIT adapts to various property needs:

    • Large Homes: Coverage across multiple floors
    • Extended Properties: Reliable alerts in detached buildings
    • Accessibility Needs: Visual notifications for hearing-impaired
    • Noise Challenges: Strobe alerts for loud environments

    Retail and Warehouse Implementation

    The ERA-DCKIT provides essential notification solutions for commercial environments:

    • Loading Docks: Alert staff to deliveries without constant monitoring
    • Storage Areas: Notify warehouse personnel of visitor arrivals
    • Retail Entrances: Manage customer flow during limited-access periods
    • Staff Areas: Ensure important notifications reach employees in break rooms
    • After-Hours Security: Monitor entry points when business is closed

    Advanced Visual Alert Technology

    The integrated strobe light technology transforms notification capabilities:

    • High-Visibility Alerts: Bright strobe flashes visible across large spaces
    • Silent Operation: Visual-only mode for quiet zones or sleeping areas
    • Dual Notification: Combine strobe with audio for high-priority alerts
    • Accessibility Support: Essential visual alerts for hearing-impaired staff
    • Customizable Duration: 15-second strobe activation ensures alert visibility

    Technical Specifications

    System Features:

    • Range: 4,000 feet
    • Alert Types: Strobe light and chime
    • Volume Settings: 4 levels
    • Transmitter Capacity: Up to 12
    • Certification: FCC certified, UL listed
    • Warranty: 1-year manufacturer coverage

    Package Contents

    • 1 x Wireless receiver with strobe
    • 1 x Weatherproof push button
    • Mounting hardware
    • User manual

    Compatibility

    • Works with all ERA series transmitters
    • Expandable with additional ERA push buttons
    • Compatible with ERA motion sensors
    • Integrates with ERA driveway alerts

    Installation and Setup

    The ERA-DCKIT features plug-and-play installation with intuitive setup. The weatherproof push button installs securely outdoors, while the receiver simply plugs into any standard outlet. The system’s straightforward programming ensures quick deployment and immediate functionality.

  • Professional Driveway Alarm System: ERA-DSDCR

    Professional Driveway Alarm System: ERA-DSDCR

    Long Range Property Monitoring Overview

    The ERA-DSDCR combines advanced sensor technology with powerful transmission capabilities. The included ERA-DSTX sensor provides reliable outdoor detection while the ERA-DCRX receiver ensures clear notifications through walls and obstacles across its impressive 4,000ft range. This professional-grade system excels in challenging environments where traditional driveway alarms fall short.

    Vehicle Detection System Capabilities

    Monitor incoming vehicles and visitors with precision using the outdoor-rated PIR sensor. The system’s versatile design allows for:

    • Multiple zone programming
    • Customizable alert melodies
    • Adjustable detection sensitivity
    • Four-level volume control
    • Extended accessory integration

    The ERA-DSDCR provides reliable detection in all weather conditions, ensuring your property remains secure year-round. Its advanced PIR technology minimizes false alerts while maintaining consistent vehicle and visitor detection.

    Property Security Monitor Applications

    The ERA-DSDCR excels in various settings:

    • Large Residential Properties: Monitor extended driveways and entry points
    • Commercial Facilities: Track vehicle arrivals and departures
    • Industrial Sites: Secure multiple access points
    • Remote Locations: Monitor distant entry areas

    Whether managing a sprawling estate or securing a commercial facility, the system adapts to your specific monitoring needs with customizable zones and alert options.

    Technical Specifications

    Receiver Features (ERA-DCRX):

    • Zones: 4 programmable
    • Sensor Capacity: Up to 12
    • Volume Levels: 4 + mute
    • Alert Options: 12 selectable melodies
    • Power: 12V DC adapter
    • Outputs: 4 x 12V DC, 1 x C-FORM relay
    • Maximum Range: 4,000 feet

    Sensor Features (ERA-DSTX):

    • Range: 4,000 feet
    • Housing: Outdoor-rated
    • Detection: PIR technology
    • Battery: 9V (included)
    • Mounting: Adjustable bracket
    • Weather Resistance: All-season protection

    Package Contents

    • 1 x ERA-DCRX receiver
    • 1 x ERA-DSTX driveway sensor
    • 1 x 12V DC power adapter
    • 1 x Mounting bracket for sensor
    • Installation hardware for sensor
    • User manual

    Compatibility

    • Works with all ERA series transmitters
    • Expandable with additional ERA-DSTX sensors
    • Compatible with 12V DC accessories
    • Integrates with external alarm systems via C-FORM relay
    • Supports multiple receiver configurations

    Installation and Setup

    The ERA-DSDCR features plug-and-play installation with flexible mounting options. The sensor’s weatherproof design and adjustable bracket enable optimal placement for reliable vehicle detection. Zone programming and melody selection are straightforward, requiring no technical expertise.

    Key installation benefits include:

    • No wiring between sensor and receiver
    • Simple zone programming process
    • Adjustable mounting options
    • Quick accessory integration
    • Multiple positioning possibilities
  • Wireless Door Sensor Button: ERA-UTX

    Wireless Door Sensor Button: ERA-UTX

    Door Alert Button Features

    The ERA-UTX offers dual functionality as both doorbell button and door sensor. Its weatherproof design and powerful transmission ensure reliable alerts through walls and across large spaces, making it ideal for any commercial environment.

    Magnetic Door Sensor Benefits

    Monitor entrances effectively:

    • Dual Function: Push button or door contact
    • Weather-Resistant: Indoor/outdoor use
    • Long Battery: 18-month life
    • LED Indicator: Visual confirmation
    • Versatile Mounting: Multiple installation options

    Push Button Alert Applications

    Perfect for multiple settings:

    • Front Entrances: Visitor notifications
    • Delivery Areas: Package alerts
    • Side Doors: Employee access
    • Loading Docks: Arrival monitoring
    • Restricted Areas: Security alerts

    Technical Specifications

    Device Features:

    • Range: Up to 4,000 feet
    • Battery: 3V Lithium CR-2
    • Push Button Size: 3.38″ x 1.94″ x 0.81″
    • Contact Size: 2″ x 0.56″ x 0.38″
    • Integration: N/O and N/C contacts
    • Warranty: One year

    Package Contents

    • 1 x ERA-UTX transmitter
    • 1 x Magnetic contact
    • 1 x CR-2 battery
    • Mounting hardware
    • User manual

    Compatible Receivers

    Works with:

    • ERA-DCRX desktop receiver
    • ERA-RXPG plugin receiver
    • ERA-VPRX portable receiver

    Installation and Setup

    The ERA-UTX features a mounting plate with screws. Mount using included hardware, insert battery, and pair with your ERA receiver for immediate operation.

  • Wireless Doorbell Button: ERA-PBTX

    Wireless Doorbell Button: ERA-PBTX

    Long Range Push Button Features

    The ERA-PBTX delivers exceptional performance with its one-mile transmission range, ensuring reliable alerts across large properties. The illuminated button provides easy visibility at night while maintaining an elegant appearance.

    Weatherproof Button Design

    Built for durability:

    • All-Weather Housing: Operates from -4°F to 140°F
    • Outdoor-Rated: Resists rain and snow
    • LED Indicator: Green glow for night visibility
    • Stylish Design: Modern aesthetic
    • Flexible Mounting: Tape or screws included

    Easy Installation System

    Simple setup process:

    • Quick Pairing: One-minute receiver connection
    • Multiple Mounting: Choose your preferred method
    • Battery Installation: Pre-installed lithium cell
    • Instant Operation: Ready to use
    • Expandable: Works with all ERA receivers

    Technical Specifications

    Button Features:

    • Range: Up to 1 mile
    • Battery Life: 2-3 years
    • Power: Lithium battery included
    • Operation: -4°F to 140°F
    • LED: Green illumination
    • Outdoor rated
    • Warranty: 1-year coverage

    Package Contents

    • 1 x ERA-PBTX transmitter
    • 1 x Lithium battery
    • Double-sided tape
    • Mounting screws
    • User manual

    Compatible Receivers

    Works with:

    • ERA-DCRX desktop receiver
    • ERA-RXPG plugin receiver
    • ERA-VPRX portable receiver
    • All ERA series products

    Installation Guide

    Choose between double-sided tape for quick setup or screws for permanent installation.

  • Wireless Motion Sensor: ERA-PIR

    Wireless Motion Sensor: ERA-PIR

    Motion Detection Features

    The ERA-PIR uses advanced passive infrared technology to detect movement and transmit signals to ERA receivers. Its precision sensors ensure reliable detection while minimizing false alerts.

    Movement Monitoring Coverage

    Configure your detection zone:

    • Adjustable Width: 9′ to 18.5′ coverage
    • Detection Depth: 0.5′ to 1.2′
    • Mounting Options: Flexible positioning
    • Zone Control: Precise angle adjustment
    • Range: 4,000ft to receiver

    Business Security Applications

    Perfect for monitoring:

    • Main Entrances: Visitor detection
    • Restricted Areas: Access monitoring
    • Storage Rooms: Activity alerts
    • Hallways: Movement tracking
    • Side Entrances: Staff access

    Technical Specifications

    Sensor Features:

    • Dimensions: 4.5″L x 2.5″W x 1.5″H
    • Transmission: 4,000 feet line-of-sight
    • Power: 9V alkaline battery (not included)
    • Battery Life: Up to 12 months
    • Low Battery Indicator: LED alert

    Package Contents

    • 1 x ERA-PIR transmitter
    • 1 x Aluminum mounting bracket
    • Mounting hardware
    • User manual

    Compatible Receivers

    Transmits to:

    • ERA-DCRX desktop receiver
    • ERA-RXPG plugin receiver
    • ERA-VPRX portable receiver
    • All ERA series receivers

    Installation Guide

    The ERA-PIR includes an adjustable mounting bracket for optimal positioning. Install battery, mount sensor, and pair with your ERA receiver for complete coverage.

  • Doorbell Signal Transmitter: ERA-EXTX

    Doorbell Signal Transmitter: ERA-EXTX

    Signal Expansion Capabilities

    Maximize your doorbell’s functionality:

    • Dual Door Support: Works with front and back doorbells
    • Wide Voltage Range: Compatible with 4V-24V systems
    • Long Battery Life: 2-3 years with included CR123A
    • Flexible Installation: Mount inside or outside chime cover
    • Universal Compatibility: Works with all ERA receivers

    Installation Convenience Benefits

    Simple setup process:

    • Quick Programming: Easy receiver pairing
    • Three-Wire Connection: Basic electrical connection
    • Multiple Mounting Options: Inside, outside, or adjacent placement
    • Included Hardware: Complete mounting kit provided
    • Compact Design: 1.75″W x 2″H x 0.75″D

    Model ERA-EXTX Features and Specifications

    • Includes transmitter, double-sided mounting tape, high-powered lithium battery, and user manual.
    • Compatible with traditional 4V-24V wired doorbells.
    • Transmitter dimensions: 1.75″ W x 2″ H x 0.75″ D.
    • Wire length: Approximately 9″ each.
    • Mounting options: Next to, on top of, or inside the chime cabinet/cover (room permitting).
    • Supports two-door configuration (e.g., front and back door).
    • Transmitter range: Up to 4,000 ft (line of sight; environmental and building materials may decrease range).
    • Transmitter battery: CR123A high-powered lithium battery (2-3 year lifespan).

    Compatibility

    • ERA-DCRX desktop receiver
    • ERA-RXPG plugin receiver
    • ERA-VPRX portable receiver
    • Standard wired doorbells
    • NOT compatible with video doorbells

    Installation Guide

    The ERA-EXTX features straightforward installation at your existing doorbell chime. Connect three wires to your current system following the clear wiring diagram. No special tools required for basic setup.

    Experience Convenience and Peace of Mind with ERA-EXTX

    Never miss a visitor again with the ERA-EXTX Wireless Doorbell Extender by Safeguard Supply. Amplify your wired doorbell’s volume, extend its range, and enjoy customizable notifications throughout your home or business. Click the “Buy Now” button to order yours today and elevate your doorbell experience.

  • Doorbell Volume Booster: LRA-EXTX-L

    Doorbell Volume Booster: LRA-EXTX-L

    Make Doorbell Louder Features

    The LRA-EXTX-L connects directly to your wired doorbell. When visitors press your doorbell button, this transmitter signals wireless receivers to play your chosen melodies.

    Sound Booster Benefits

    Expand your doorbell’s reach:

    • Two-Door Compatible: Front and back coverage
    • Battery Powered: Long-life lithium included
    • Easy Integration: Simple 3-wire connection
    • Versatile Use: Works with any LRA receiver
    • Custom Sounds: Different tones per door

    Technical Specifications

    Transmitter Features:

    • Power: Long-life lithium battery
    • Support: Up to 2 doors
    • Installation: Wires to existing chime
    • Compatibility: All LRA receivers
    • Range: Up to 1,000ft
    • Size: 2.25″L x 2.25″W x 0.5″D

    Installation Guide

    Simple wired connection:

    1. Access doorbell chime
    2. Connect to terminal screws
    3. Insert battery
    4. Pair with LRA receivers
    5. Select door melodies

    Compatibility

    Works with:

    • Standard wired doorbells
    • LRA series receivers
    • Front/back door buttons
    • Multiple LRA receivers
    • Does not work with video doorbells or intercoms

    Package Contents

    • 1 x LRA-EXTX-L transmitter
    • 1 x Lithium battery
    • Mounting hardware
    • User manual
  • Economy Door Chime Kit: SS130

    Economy Door Chime Kit: SS130

    Budget Alert System Features

    The SS130 delivers professional-grade monitoring at an economical price. When doors open, the magnetic contact triggers instant notifications through the powerful receiver.

    Low Cost Door Alert Benefits

    Value-packed functionality:

    • Loud Volume: Up to 95dB
    • Multiple Tones: 52 melodies
    • Extended Range: 600ft coverage
    • Visual Alerts: LED indicators
    • Four Volumes: Adjustable settings

    Affordable Entry Chime Uses

    Perfect for various needs:

    • Home Security: Door monitoring
    • Small Business: Entry alerts
    • Office Spaces: Access tracking
    • Storage Areas: Door status
    • Multiple Doors: Complete coverage

    Technical Specifications

    Receiver Features:

    • Size: 3.25″ x 3.125″ x 1.25″
    • Power: 110V-220V AC
    • Frequency: 433.92 MHz
    • Volume: 25-95dB
    • Operating Temp: -30°C to 70°C

    Door Contact:

    • Main Unit: 1″W x 2″H x 0.5″D
    • Magnet: 0.5″W x 2″H x 0.5″D
    • Battery: 3V CR1632 Lithium
    • Power Use: <10mW
    • Mount: Double-sided tape

    Package Contents

    • 1 x Plugin receiver
    • 1 x Door contact sensor
    • 1 x CR1632 battery
    • Double-sided tape
    • User manual

    Expandability

    System growth options:

    • Up to 58 transmitters (sensors)
    • Unlimited receivers (SS135 and SS155)
    • Different melody per door
    • Extended coverage areas

    Installation Guide

    The SS130 features simple setup:

    1. Plug in receiver
    2. Mount door contact
    3. Insert battery
    4. Select melody
    5. Adjust volume
  • Flashing Doorbell Light Receiver: SS155

    Flashing Doorbell Light Receiver: SS155

    Visual Doorbell Features

    The SS155 transforms standard doorbells into visual alert systems. Its high-intensity LED strobe provides unmistakable notifications when visitors arrive or sensors activate.

    Deaf Alert System Benefits

    Complete accessibility solution:

    • Bright Strobe: Clear visual signals
    • Compact Size: 3.25″ x 3.25″ x 1.5″
    • Simple Setup: Plug-and-play design
    • Extended Range: 1,000ft coverage
    • Universal Mount: Any standard outlet

    Hearing Impaired Applications

    Perfect for multiple settings:

    • Home Use: Bedrooms and offices
    • Care Facilities: Patient rooms
    • Work Spaces: Noisy environments
    • Medical Offices: Quiet areas
    • Senior Living: Clear notifications

    Technical Specifications

    Receiver Features:

    • Size: 3.25″H x 3.25″W x 1.5″D
    • Power: 110V AC outlet
    • Range: Up to 1,000 feet
    • Frequency: 915 MHz
    • Weight: 0.2 oz
    • Alert: LED strobe

    Compatibility

    Works with:

    • SS111 push buttons
    • SS132 door contacts
    • SS141 motion sensors
    • All SS series transmitters
    • Multiple transmitter types

    Installation Options

    Simple setup process:

    • No tools required
    • Instant plug-in operation
    • Quick transmitter pairing
    • Multiple unit placement
    • Flexible positioning

    Setup Guide

    The SS155 features instant operation:

    1. Select outlet location
    2. Plug in receiver
    3. Pair transmitters
    4. Test visual alerts
    5. Adjust as needed
  • Flashing Doorbell System: LRA-D1000S-L

    Flashing Doorbell System: LRA-D1000S-L

    Visual Alert Doorbell Features

    The LRA-D1000S-L combines bright LED notifications with customizable sounds. Choose between strobe-only mode for quiet environments or full audio-visual alerts for comprehensive notification.

    Doorbell For Elderly Benefits

    Accessible alert options:

    • Bright Strobe: High-visibility LED flash
    • Three Modes: Sound, strobe, or both
    • Clear Audio: Up to 85dB volume
    • Simple Setup: Plug-and-play design
    • LED Button: Illuminated for visibility

    Easy Install Doorbell Applications

    Perfect for multiple needs:

    • Hearing Impaired: Visual notifications
    • Noisy Environments: Bright strobe alerts
    • Quiet Areas: Silent strobe mode
    • Multiple Entrances: Two-zone support
    • Large Homes: Extended 1,000ft range

    Technical Specifications

    Receiver Features:

    • Power: Standard 120V outlet
    • Alerts: LED strobe + sound
    • Volume: Up to 85dB
    • Melodies: 13 options
    • Zones: 2 transmitter support
    • Range: Up to 1,000ft

    Push Button Features:

    • Model: LRA-PBTXA-L
    • Illumination: Green LED halo
    • Weather: Outdoor rated
    • Battery: CR2032 (included)
    • Size: 3″H x 1.25″W x 1″D

    Package Contents

    • 1 x LRA-DCRXS plug-in receiver
    • 1 x LRA-PBTXA-L push button
    • 1 x CR2032 battery
    • Mounting hardware
    • User manual

    Compatibility

    Works with:

    • Additional LRA-DCRXS receivers
    • LRA-DCRX battery receiver
    • All LRA series products

    Installation Guide

    The LRA-D1000S-L requires no wiring. Simply plug in the receiver and mount the push button using included hardware or tape.

  • Hearing Impaired Doorbell with Strobe: WC180-SS

    Hearing Impaired Doorbell with Strobe: WC180-SS

    Visual Alert Doorbell Features

    The WC180-SS ensures notifications are seen with its ultra-bright strobe light. When triggered, the light flashes 15 times while playing your chosen melody, guaranteeing alerts aren’t missed.

    Accessible Doorbell Benefits

    Complete notification system:

    • Bright Strobe: Clear visual alerts
    • Multiple Tones: 58 melody options
    • Extended Range: 600ft coverage
    • Privacy Codes: 17,000 combinations
    • Expandable: Up to 52 buttons

    ADA Compliant Applications

    Perfect for various needs:

    • Hearing Loss: Visual notifications
    • Noisy Areas: Workshop alerts
    • Multi-Door: Different tones
    • Industrial: Clear signals
    • Home Office: Silent alerts

    Technical Specifications

    Kit Contents:

    • SS111 wireless push button
    • SS155 strobe receiver
    • Coverage: Up to 600 feet
    • Melodies: 58 selections
    • Codes: 17,000 privacy options
    • Power: Standard outlet (receiver)

    Installation Options

    Simple setup process:

    • Plug-in receiver design
    • No wiring required
    • Tape or screw mounting
    • Quick button pairing
    • Instant operation

    Expandability

    System growth options:

    • Additional push buttons
    • Extra strobe receivers
    • Multiple entrance monitoring
    • Unique melodies per button
    • Extended coverage areas

    Setup Guide

    The WC180-SS features tool-free installation:

    • Test system
    • Plug in strobe receiver
    • Mount push button
    • Select melody
    • Set privacy code
  • Loud Alarm Bell: SS-FIREBELL-12V

    Loud Alarm Bell: SS-FIREBELL-12V

    Fire Bell Sound Features

    The SS-FIREBELL-12V delivers powerful notifications through its uniquely designed gong. The motor-driven mechanism ensures consistent, attention-grabbing alerts every time.

    Loud Doorbell Benefits

    Professional-grade sound:

    • High Volume: 100dB output
    • Quick Install: Terminal connections
    • Noise Control: RFI/EMI suppression
    • Versatile Use: Indoor/outdoor rated
    • Quality Build: 6-inch gong

    Alert Bell Applications

    Perfect for multiple uses:

    • Doorbell Enhancement: ERA-DCRX connection
    • Industrial Areas: Clear notifications
    • Large Spaces: Extended coverage
    • Noisy Environments: Cut through sound
    • Warehouse Use: Powerful alerts

    Technical Specifications

    Performance:

    • Sound Level: 100dB
    • Voltage: 12V DC only
    • Size: 6-inch diameter
    • Wiring: AWG 12-18 compatible
    • Design: Motor-driven

    Installation Features

    Easy setup process:

    • Quick-connect terminals
    • Field wiring compatible
    • Simple troubleshooting
    • Noise suppression built-in
    • Multiple mounting options

    Compatibility

    Works with:

    • ERA-UTDCR system
    • ERA-DCRX receiver
    • 12V DC outputs
    • Terminal connections
    • Alert systems

    Package Contents

    • 1 x SS-FIREBELL-12V
    • Mounting hardware
    • Terminal connectors
    • Installation guide
    • Wiring diagram
  • Loud Door Chime with Strobe: LRA-DCRX-L

    Loud Door Chime with Strobe: LRA-DCRX-L

    High Volume Doorbell Alert Features

    The LRA-DCRX-L delivers powerful notifications through adjustable sound and visual alerts. Control volume levels while maintaining clear, distinct alerts for each monitored zone.

    Battery Operated Chime Benefits

    Flexible installation options:

    • Dual Power: Battery or AC adapter
    • Volume Control: Adjustable settings
    • Visual Alerts: Bright strobe light
    • Zone LEDs: Color-coded indicators
    • Multiple Tones: 32 distinct melodies

    Delivery Door Alert Applications

    Perfect for various settings:

    • Loading Areas: Delivery notifications
    • Back Entrances: Staff access
    • Multiple Doors: Four-zone monitoring
    • Closed Offices: Clear alerts through doors
    • Warehouse Areas: High-volume alerts

    Technical Specifications

    Receiver Features:

    • Dimensions: 6.60″H x 5.30″W x 1.70″D
    • Range: Up to 1,000 feet
    • Zones: 4 transmitter support
    • Melodies: 32 selectable tones
    • Indicators: LED zone lights
    • Power: Battery or AC adapter

    Alert Options

    • Adjustable volume control
    • Strobe light activation
    • Combined audio-visual alerts
    • Zone-specific melodies
    • LED status indicators

    Compatibility

    Works with:

    • LRA-PBTXA-L push buttons
    • LRA-EXTX-L doorbell extender

    Installation Guide

    The LRA-DCRX-L offers flexible mounting with battery or AC power. Position anywhere within range of transmitters for optimal coverage.

  • Loud External Siren: 115dB Alert

    Loud External Siren: 115dB Alert

    High Volume Alert Features

    This powerful siren cuts through ambient noise with 115dB output. The metal construction ensures durability in demanding environments.

    Industrial Siren Benefits

    Professional-grade performance:

    • Powerful Sound: 115dB output
    • Wide Power: 6-15V DC range
    • Efficient: 15 watts/750mA
    • Durable: Metal housing
    • Compact: 3″ x 3″ x 2.7″

    Maximum Volume Applications

    Ideal for multiple settings:

    • Warehouses: Clear alerts
    • Manufacturing: Cut through noise
    • Loading Docks: Delivery signals
    • Large Properties: Extended reach
    • Industrial: Powerful notifications

    Technical Specifications

    Performance:

    • Sound Level: 110-115dB
    • Voltage: 6-15V DC
    • Current: ≤750mA
    • Power: 15 watts
    • Temperature: 14-122°F

    Construction

    Built for durability:

    • Material: Black metal
    • Size: 3″ x 3″ x 2.7″
    • Tone: Single
    • Mount: Wall installation
    • Connection: Terminal wiring

    Compatibility

    Works with:

    • ERA-UTDCR receiver
    • ERA-PRDCR system
    • 12V DC outputs
    • Alert controllers
    • Terminal connections

    Installation Guide

    Simple wired setup:

    1. Locate output terminals
    2. Connect power wires
    3. Mount siren
    4. Test volume
    5. Adjust placement
  • Outdoor Motion Detector: ERA-DSTX Wireless Sensor

    Outdoor Motion Detector: ERA-DSTX Wireless Sensor

    Motion Sensing Technology Features

    The ERA-DSTX utilizes advanced PIR technology to detect movement in outdoor spaces. Its sophisticated sensors accurately identify both vehicle and pedestrian activity, providing instant alerts through any compatible ERA receiver within its impressive 4,000ft range.

    Key Features and Benefits:

    • Unmatched Wireless Range: With a staggering 4,000-foot range, the ERA-DSTX covers vast areas, making it ideal for large properties. Whether your home is surrounded by open landscapes or your business is nestled among industrial materials, this sensor ensures that every movement is detected and reported back to you, no matter the distance.
    • Outdoor-Rated Durability: Designed to withstand the rigors of outdoor use, the ERA-DSTX is built to last. Its outdoor rating guarantees performance in various environmental conditions, from rain to sun, ensuring your security system remains operational year-round.
    • Versatile Compatibility: Seamlessly integrating with the ERA line of products, this driveway monitor sensor can be paired with multiple receivers, such as the ERA-DCRX desktop receiver for home use or the ERA-VPRX portable receiver for on-the-go notifications in a business setting.
    • Easy Installation: Setting up the ERA-DSTX is straightforward, requiring no complex wiring or professional installation. Its wireless nature allows for flexible placement, ensuring optimal coverage of your driveway or business entryway.

    Applications for Home and Business

    For Residential Use: Transform your home security with the ERA-DSTX. This sensor extends your monitoring capabilities, alerting you the moment a vehicle or person enters your driveway. Whether you’re inside your home or out in the backyard, rest assured that you’ll be immediately notified of any arrivals, offering both convenience and an added layer of security.

    For Commercial Use: Businesses, particularly those with loading docks or secluded entryways, will find immense value in the ERA-DSTX. Early-warning notifications can streamline operations, allowing for better preparedness for deliveries or visitor arrivals. Its long-range capability ensures that even remote sections of your property are under surveillance, enhancing overall security and efficiency.

    Built for outdoor reliability:

    • All-Weather Design: Performs in rain, snow, and heat
    • Rugged Housing: Durable outdoor construction
    • Stable Performance: Consistent detection in varying conditions
    • Year-Round Operation: Reliable monitoring in any season
    • UV-Resistant: Maintains integrity under sun exposure

    Perimeter Protection Solutions

    Monitor key areas effectively:

    • Driveway Monitoring: Early visitor detection
    • Entry Points: Secure access areas
    • Loading Zones: Track delivery arrivals
    • Parking Areas: Monitor vehicle movement
    • Remote Locations: Cover distant property sections

    Technical Specifications

    Sensor Features:

    • Detection Type: PIR motion sensing
    • Range: Up to 4,000 feet wireless
    • Power: 9V battery operated (not included)
    • Housing: Weather-resistant
    • Mount: Adjustable bracket included
    • Compatibility: All ERA receivers

    Package Contents

    • 1 x ERA-DSTX sensor
    • 1 x Mounting bracket
    • Installation hardware
    • User manual

    Compatibility

    • ERA-DCRX desktop receiver
    • ERA-VPRX portable receiver
    • ERA-RXPG plug-in receiver
    • ERA-DSDCR driveway alert kit
    • All ERA series products

    Installation and Setup

    The ERA-DSTX features an adjustable mounting bracket. Position the sensor for optimal coverage of your monitored area, insert the battery, and pair it with your ERA receiver for immediate protection.

  • Door Chime for Business: ERA-DCRX

    Door Chime for Business: ERA-DCRX

    The ERA-DCRX delivers comprehensive monitoring through four distinct zones. Each zone supports up to three transmitters and provides dedicated 12V DC output for powering external devices, making it perfect for commercial spaces.

    Wireless Door Chime System Benefits

    Control connected devices effectively:

    • Independent Control: Zone-specific settings
    • Multi-Sensor Receiver: Works with up to 12 ERA transmitters/sensors (3 per zone)
    • Four DC Outputs: One per zone at 12V
    • Adjustable Timing: 5 sec to 2 min activation
    • Relay Integration: C-FORM for automation
    • LED Indicators: Visual zone status
    • Loud Adjustable Sound: 4 levels of volume control
    ERA-DCRX-Calllouts

    Technical Specifications

    Receiver Features:

    • Zones: 4 programmable
    • Range: Up to 4,000 feet
    • Power Input: 12V DC adapter
    • Outputs: 4 x 12V DC, 1 x C-FORM relay
    • Volume: 4 levels + mute + off
    • Rating: Indoor use

    Package Contents

    • 1 x ERA-DCRX receiver
    • 1 x 12V DC power adapter (5ft cord)
    • User manual

    Compatible Transmitters

    Works with:

    • ERA-PBTX push button
    • ERA-UTX universal transmitter
    • ERA-PIR motion sensor
    • ERA-DSTX driveway sensor
    • ERA-EXTX doorbell transmitter

    Installation and Setup

    The ERA-DCRX offers versatile mounting options and straightforward zone programming. Connect power, position as needed, and easily program transmitters to specific zones for custom alert management.

  • Plug in Doorbell with Flashing Strobe: LRA-DCRXS-L

    Plug in Doorbell with Flashing Strobe: LRA-DCRXS-L

    Hearing Impaired Alert Features

    The LRA-DCRXS-L prioritizes accessibility with a bright strobe light that provides clear visual notifications. Choose between strobe-only mode for deaf users or combined audio-visual alerts for those with partial hearing loss.

    Senior Friendly Doorbell Benefits

    Accessible design features:

    • Visual Alerts: High-visibility strobe
    • Loud Chimes: Up to 90dB volume
    • Easy Setup: Simple plug-in design
    • Flexible Modes: Sound, strobe, or both
    • Clear Display: Zone indicator lights

    Accessibility Doorbell Applications

    Perfect for multiple needs:

    • Deaf Users: Clear visual notifications
    • Hard of Hearing: Combined alerts
    • Elderly Care: Enhanced awareness
    • Multiple Rooms: Extended coverage
    • Care Facilities: Reliable alerts

    Technical Specifications

    Receiver Features:

    • Power: Standard 120V outlet
    • Range: Up to 1,000 feet
    • Zones: 2 transmitter support
    • Volume: 80-90dB adjustable
    • Melodies: 13 selections
    • Operating Modes: 3 options

    Alert Options

    Choose your preferred notification:

    • Bright strobe light only
    • Audio chime only
    • Combined strobe and sound
    • Customizable per zone
    • Different melodies per transmitter

    Compatibility

    Works with:

    • All LRA transmitters
    • Multiple LRA receivers
    • Up to two devices
    • Standard power outlets
    • Existing LRA systems

    Installation Guide

    The LRA-DCRXS-L features truly accessible setup – simply plug into any standard outlet, pair with transmitters, and select your preferred alert mode.

  • Plugin Strobe Light Alert Receiver: ERA-RXPG

    Plugin Strobe Light Alert Receiver: ERA-RXPG

    Multi-Device Alert System Features

    The ERA-RXPG delivers comprehensive coverage through versatile device compatibility. Connect up to 12 different ERA transmitters and sensors for complete property monitoring, from push buttons to motion sensors and doorbell extenders. <h2>Flexible Notification Options</h2>

    Flexible Notification Options

    • Three Operation Modes: Sound, strobe, or both
    • Volume Control: Four adjustable levels up to 95dB
    • Visual Alerts: 15-second strobe activation
    • Custom Sounds: Multiple melody options
    • One-Touch Operation: Simple mode switching

    Simple setup and operation:

    • Quick Programming: Easy sensor pairing
    • Compact Design: 4.75″H x 2.75″W x 1.5″D
    • Instant Operation: Immediate functionality
    • Portable Usage: Relocate as needed

    ERA-RXPG Product Features:

    • The ERA-RXPG has an operating range of up to 4,000 ft.
    • The ERA-RXPG has three modes of operation:
      • Strobe only:  when triggered, the strobe will flash for approximately 15 seconds
      • Sound only: when triggered, the strobe will play the melody associated with the programmed sensor/transmitter.
      • Sound and Strobe
    • Up to 12 different transmitters/sensors may be programmed to each ERA-RXPG
    • Four sound levels.  A fifth push of the volume button turns the receiver off.  Push again to go to the highest sound level.

    ERA-RXPG Specifications:

    • The receiver plugs into a standard wall outlet
    • Receiver dimensions are: 4.75”H x 2.75”W x 1.5” D
    • FCC certified
    • UL Listed
    • Manufactured by Safeguard Supply
    • 1-year warranty

    Compatible Devices

    • ERA-PIR indoor motion sensor
    • ERA-DSTX outdoor motion sensor
    • ERA-UTX push button/door contact
    • ERA-PBTX outdoor push button
    • ERA-EXTX doorbell transmitter

    Installation Requirements

    The ERA-RXPG features true plug-and-play setup. Simply insert into any standard wall outlet and follow the quick programming guide to pair with your ERA transmitters and sensors.

    Invest in Reliable Coverage; Order Your ERA-RXPG Today!

    Don’t settle for limited doorbell functionality. Upgrade your security with the ERA-RXPG Plugin Receiver and experience peace of mind with reliable, long-range coverage. Order yours today and enjoy the freedom of knowing you’ll never miss a moment.

  • Portable Door Buzzer: ERA-VPRX

    Portable Door Buzzer: ERA-VPRX

    Wireless Door Alert System Feature

    The ERA-VPRX keeps mobile staff connected with customizable alerts. Choose between sound, vibration, or both, with distinct melodies for each transmitter ensuring you know exactly which entrance needs attention.

    Mobile Alert Device Capabilities

    Stay informed on the move:

    • Extended Range: 4,000ft coverage area
    • Multiple Alerts: Sound and vibration options
    • Battery Life: 6-7 days standby time
    • Display: LED backlight for visibility
    • Portable Design: Belt clip included

    Business Door Monitor Applications

    Perfect for various environments:

    • Retail Stores: Track customer entries
    • Warehouses: Monitor loading areas
    • Restaurants: Manage curbside pickup
    • Offices: Track deliveries
    • Service Areas: Staff notification

    Technical Specifications

    Device Features:

    • Dimensions: 4.0″H x 1.5″W x 0.75″D
    • Volume: 4 levels up to 80dBA
    • Transmitter Support: Up to 16
    • Power: Rechargeable Li-Ion battery
    • Operating Temperature: -30°F to 120°F
    • Frequency: 433 MHz

    Package Contents

    • 1 x ERA-VPRX receiver
    • 1 x Rechargeable battery
    • 1 x Charging cable and brick
    • Belt clip
    • User manual

    Compatible Transmitters

    Works with:

    • ERA-UTX universal transmitter
    • ERA-DSTX driveway sensor
    • ERA-PIR motion sensor
    • All ERA series transmitters

    Installation and Setup

    The ERA-VPRX requires no installation – simply charge, power on, and program your desired transmitters. The intuitive interface allows quick customization of alert preferences and volume settings.

  • Safeguard Supply LRA-PLUG Plug In Adapter For LRA-DCRX Receivers

    Safeguard Supply LRA-PLUG Plug In Adapter For LRA-DCRX Receivers

  • Strobe Light with Siren: SS-STROBESIREN

    Strobe Light with Siren: SS-STROBESIREN

    Audio Visual Alert Features

    The SS-STROBESIREN combines powerful sound and light alerts. Its dual-notification design ensures alerts are noticed in any environment.

    Security Strobe Benefits

    Professional alert capabilities:

    • Loud Siren: 110dB output
    • Bright Strobe: 120 flashes/minute
    • Durable Case: Fireproof ABS
    • Color Choice: Red or blue
    • Efficient: 70mA current draw

    Combined Alert Applications

    Perfect for various needs:

    • Entry Points: Clear notifications
    • Restricted Areas: Powerful warnings
    • Warehouses: Multi-sensory alerts
    • Industrial: High-visibility signals
    • Security: Attention-grabbing alerts

    Technical Specifications

    Performance:

    • Sound Level: 110±3dB
    • Flash Rate: 120/minute
    • Voltage: 12V DC
    • Current: 70mA
    • Size: 4.72″ x 2.83″ x 1.42″

    Construction:

    • Material: ABS flame retardant
    • Colors: Red or blue
    • Mount: Wall installation
    • Protection: Fireproof housing
    • Weight: 116g

    Installation Guide

    Simple wall mounting:

    • Hardware included
    • Two wall anchors
    • Two mounting screws
    • Quick connection
    • 12V DC wiring

    Compatibility

    Works with:

    • 12V DC systems
    • Terminal outputs
    • Alert controllers
    • Security systems
    • Notification networks

    Package Contents

    • 1 x SS-STROBESIREN
    • 2 x Wall anchors
    • 2 x Mounting screws
    • Installation guide
    • Wiring diagram
  • Wireless Door Alert Receiver: SS135

    Wireless Door Alert Receiver: SS135

    Home Alert System Features

    The SS135 serves as your central notification hub. Connect unlimited sensors and customize alerts with unique melodies for each monitored zone.

    Door Alert Options

    Complete notification control:

    • Multiple Tones: 52 melody choices
    • Volume Levels: 4 settings up to 90dB
    • Visual Alerts: LED flash indicators
    • Extended Range: 600ft coverage
    • Easy Setup: Plugin installation

    <h2>Security Chime Applications</h2>

    Perfect for monitoring:

    • Entry Points: Doors and windows
    • Motion Areas: Driveways and paths
    • Restricted Zones: Private areas
    • Multiple Floors: Complete coverage
    • Outdoor Spaces: Extended monitoring

    <h2>Technical Specifications</h2>

    Receiver Features:

    • Range: Up to 600 feet
    • Volume: 4 adjustable levels
    • Alerts: Sound and LED flash
    • Power: Standard outlet
    • Sensor Support: Unlimited
    • Melodies: 52 options

    <h3>Compatibility</h3>

    Works with:

    • SS111 push buttons
    • SS131 door contacts
    • SS141 motion sensors
    • All SS series transmitters
    • Multiple sensor types

    <h3>Alert Customization</h3>

    Create distinct notifications:

    • Unique sounds per sensor
    • Adjustable volume by location
    • Visual confirmation
    • Zone identification
    • Custom alert patterns

    <h3>Installation Guide</h3>

    The SS135 features instant setup:

    1. Plug into outlet
    2. Pair desired sensors
    3. Select melodies
    4. Adjust volume
    5. Test system
  • Wireless Door Chime Kit with Touch Push Button

    Wireless Door Chime Kit with Touch Push Button

    * Please note, the SS250 push button and receiver ARE NOT compatible with other products in the SS Series.

    A wireless doorbell is an ideal unit for quickly installing a doorbell without the hassle of wiring. Plug the receiver into an AC outlet and mount the transmitter where needed; you are ready! The doorbell features 52 ringtones and four levels of volume to suit your needs and can reach a distance of up to 300m when there are no obstructions.

    Main features:

    1.  Stylish modern design fits into any home and office.

    2.  52 ringtones(16 chord)to choose from and 4 steps volume control(25~110dB).

    3.  Simple to use and easy to install without the hassle of running any wires.

    4.  With up to 300m operating range in open space,100m audible range.

    5.  IP55/IP44 waterproof transmitter

    6.  Eye-catching backlight flashes when someone pushes the doorbell.

    7.  Different quantity of push unit(transmitter) and chime unit(receiver) are free to pair together.

    8.  If paired with multiple push units in one system, each push unit’s chime can be different.

    9.  Using learning code to prevent interference from other wireless transmitters.

    10. Easy to choose your change and select your favorite ringtone with the forward and backward buttons.

    11. Automatically save the selected ringtone after powering off.

    12. Approved with CE, FCC, and RoHS certification.

    Specification:

    The voltage of Plug-In Smart Receiver: AC 110V ~ AC 220V 50Hz/60Hz

    The battery in Transmitter: 12V 23A Alkaline Battery

    Power Consumption (Transmitter): < 10mW

    Wireless Range: 900 ft in Open Air; 100~500 ft w/ Metal Security doors and Walls

    Selectable Ring Tone: 52 Options

    Volume Range: 4 Levels (up to 110 dB)

    Expandable to Multiple Smart Receiver or Transmitter: Up to 50

    Working Frequency: 433.92 MHz±280KHz

    Working Temperature: -30℃~70℃

    Plug type:AU, US,EU, UK optional

  • Motion Sensor with Sound: ERA-PIR-SPK

    Motion Sensor with Sound: ERA-PIR-SPK

    Store Entry Alert Features

    The ERA-PIR-SPK delivers precise entrance monitoring with its built-in speaker. Mount above any doorway for instant alerts when customers enter, with adjustable coverage to prevent unwanted triggers from general foot traffic.

    ERA-PIR-Mounted-Over-Doorway
    ERA PIR Mounted Over the Doorway

    A typical installation is to mount the sensor over a door using the included mounting bracket.  What makes this unit stand out over other sensors is the design of the mounting bracket.  Most PIR sensor mount on a pivot ball and do not allow you to aim the sensor’s emitted beam inwards toward the floor.  Although this might work well when you want to cover a general area, many business owners and managers want to use this product for a specific purpose, often to detect movement through a doorway.  By mounting this sensor on the bracket and rotating the sensor’s lens up and down, you can “aim” the beam straight down and not bleed into other areas.

    For example, if you have a convenience store, you probably want to detect when someone enters through a doorway but do not want to catch general foot traffic through your store–that might not be very pleasant.

    When triggered, the sensor will emit sound from a speaker built into the unit.  It does not transmit the signal to a remote location like the sister product, the ERA-PRDCR.  Ideal for areas up to 3,000 ft., the gentle tone sounds with volume control is enough to notify but not alarming.  If you need something louder, please refer to the above product, the ERA-PRDCR.

    Entry Chime System Benefits

    Customize your alerts:

    • Four Volume Levels: Up to 90dB
    • Three Alert Tones: Including classic ding-dong
    • Battery Efficient: 18-month life at 50 triggers daily
    • Quick Reset: 5-second activation delay
    • Low Battery Alert: Unique warning tone

    Retail Door Monitor Applications

    Perfect for various settings:

    • Convenience Stores: Entrance alerts
    • Small Shops: Customer notification
    • Office Doors: Visitor monitoring
    • Service Areas: Staff alerts
    • Side Entrances: Secondary access monitoring

    Technical Specifications

    Coverage by Mount Height:

    • 8′ Height: 9.20′ Wide x 0.60′ Deep
    • 10′ Height: 11.5′ Wide x 0.75′ Deep
    • 13′ Height: 14.95′ Wide x 0.98′ Deep
    • 16′ Height: 18.40′ Wide x 1.20′ Deep

    System Features:

    • Power: 9V alkaline battery
    • Volume: 90dB maximum
    • Detection: Passive infrared
    • Reset Time: 5 seconds
    • Warranty: 1-year coverage

    Package Contents

    • 1 x ERA-PIR-SPK sensor
    • 1 x Adjustable mounting bracket
    • Mounting hardware
    • User manual

    Mounting Options

    The ERA-PIR-SPK features a unique mounting bracket allowing precise beam adjustment. Position the sensor to monitor exactly where you need coverage without detecting unwanted areas.

    *Notes on mounting the unit:

    The higher the unit is mounted, the larger the monitored zone becomes.  For example, mounted at 8 feet off the ground, the sensor will emit an area approximately 9.2′ wide x 0.6′ depth.  At 16′ mounting height, the zone is increased to 18.4′ w x 1.20′ d.  The unit was engineered to create a narrow depth as most customers are business users who will use this product in a convenience store or store.  The small depth of the zone helps to eliminate unwanted triggers by foot traffic near the monitored door.

    ERA-PIR-Monitored-Zone-Size
    Changes to mounting height changes the size of the monitored zone

    Easy Installation

    1. Install 9V battery
    2. Mount bracket at desired height
    3. Adjust sensor angle for coverage
    4. Select preferred tone and volume
  • Wireless Push Button: SS111

    Wireless Push Button: SS111

    Weatherproof Button Features

    IThe SS111 delivers reliable performance in any weather. Its durable construction and extended range ensure dependable notifications throughout your property.

    Quick Mount Button Benefits

    Easy setup options:

    • No Wiring: Battery powered
    • Dual Mounting: Tape or screws
    • Weather Protected: All-season use
    • Long Range: 600ft coverage
    • LED Indicator: Press confirmation

    Doorbell Button Applications

    Perfect for multiple needs:

    • Front Door: Visitor alerts
    • Side Entry: Service access
    • Back Door: Delivery notices
    • Gates: Remote monitoring
    • Multiple Areas: System expansion

    Technical Specifications

    Button Features:

    • Size: 2.75″L x 1.5″W x 0.50″D
    • Range: Up to 600 feet
    • Power: 12V 23A battery
    • Construction: Weather-resistant
    • Warranty: One year

    Package Contents

    • 1 x SS111 push button
    • 1 x 12V 23A battery
    • Double-sided tape
    • Mounting screws
    • User manual

    Compatibility

    Works with:

    • SS110 doorbell kit
    • SS135 plugin receiver
    • All SS series receivers
    • Multiple receiver setup
    • Extended alert systems

    Installation Guide

    The SS111 offers simple setup:

    • Test connection
    • Insert included battery
    • Choose mounting method
    • Place button
    • Pair with receiver
